PAS68 Static Bollard – CR830SH
The CR830SH is a shallow 400mm foundation complete bollard. This bollard is manufactured and delivered complete with integral re-bar cage, making this the easiest product to install. The CR830SH is fully impact tested as a single unit with single foundation helping to simplify installation programmes. It was tested at Mira with the N2 7.5 ton vehicle at 48kph.
Technical Specifications
- PAS68: V/7500[N2]/48/90:1.1/0.0
- Very shallow foundation at just 400mm
- Uniquely impact tested as a single unit (7.5 ton 48kph)
- Can be installed as a single unit

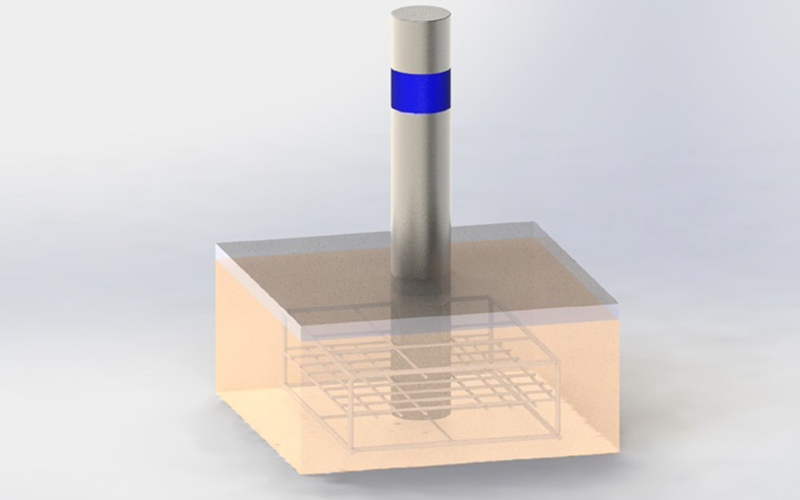

- Supplied with integral re-bar making installation simple and quick
- Very easy to install – no additional re-bar, no cages, no connections, no complicated foundations: simply dig, position and concrete
- Slim 219mm diameter bollard when painted or when in stainless steel
- 1000mm raise height above ground
- Optional Finishes: Hot dip galvanised (HDG), powder coated, wet painted, stainless steel
- Stainless steel sleeve can be designed to your specific requirements
