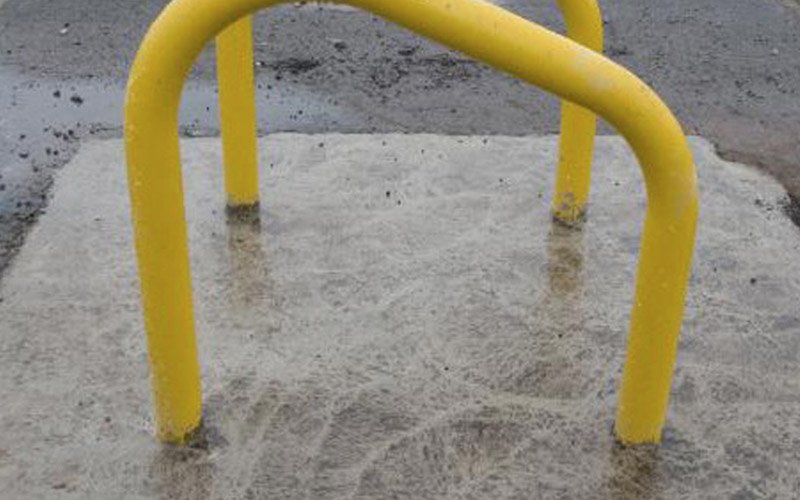

PAS68 Cycle Hoop – CR840CR
A zero penetration cycle hoop tested with the N2 7,500kg vehicle at 64kph. This product was extensively tested at 2 angles. Designed to complement existing street furniture. Shallow depth foundation of just 250mm. Height above ground 1000mm. Available with gaps between 800mm and 1200mm. Suitable for securing bikes,scooters and motorcycles.
Technical Specifications
- PAS68: V7500[N2]64/15:0.0/10.8
- PAS68: V7500[N2]64/90:2.6/12.8
- Bollard tested with N2 7,500kg vehicle at 64kmh
- Height: 1050mm above FFL
- Optional Finishes: Hot dip galvanised (HDG), powder coated, wet painted, stainless steel
- Foundation: 2000mm x 2000mm x 250m
- Supplied as a pair with all integral connections
- No re-bar required
