Automatic Rising Bollards – CR830AT

Categories , Tag

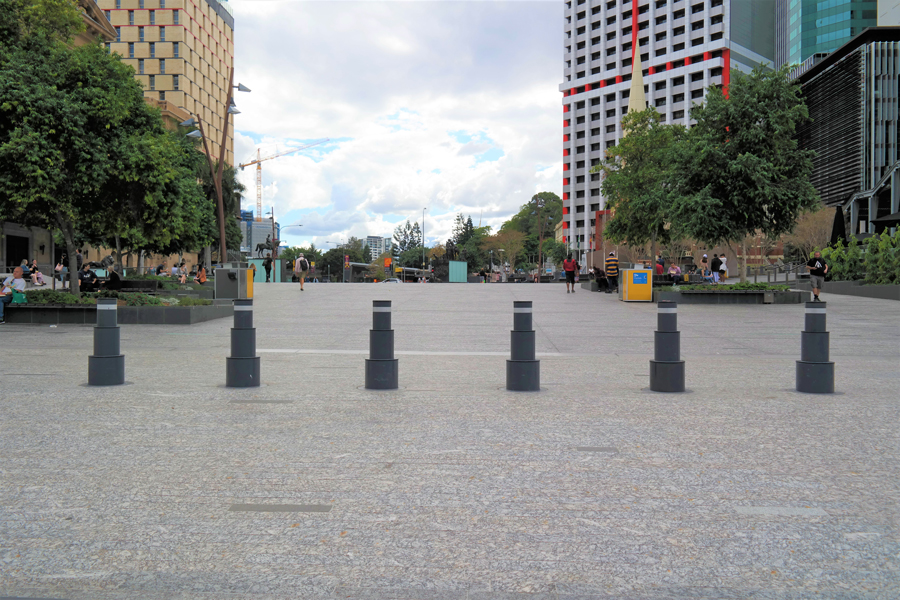

The CR830AT is the worlds shallowest foundation automatically rising PAS68 telescopic bollard that has been fully tested at MIRA with the N2 7.5 ton vehicle travelling at 48kph. With a foundation depth of just 500mm (almost half the depth of its nearest competitor) it has an impressive raise height of 900mm to prevent most vehicles from gaining access to your facility. This was tested as a single unit with a single foundation and is supplied complete with integral re-bar pre attached to the bollard making installation very easy.

Contact us for more information

Technical Specifications

  • PAS68: V7500[N2]48/90:0/0
  • Impact tested as a single unit in a single foundation
  • Supplied with integral re-bar making installation simple and quick
  • Very shallow foundation of just 500mm
  • 900mm raise height above ground
  • Diameter: 346/255/194mm arrays at 1455mm centres
  • Zero penetration after impact
  • Uses 3 phase power at 10amp
  • 100% duty cycle
  • Can be supplied with LPS SR2 or LPS SR4 security cabinets if required
  • Supplied with a high performance control board
  • Works standalone, in unison with other products or as a tiger trap
  • Can also be used as a manual system via drill or hand-pump
  • Optional Finishes: Hot dip galvanised (HDG), powder coated, wet painted, stainless steel
  • Raise speed: 8-10 seconds standard
