Cantilever Gate

Cantilever Gate | CODE: CR8CG
Product Description

The Create Security heavy duty cantilever gate system is designed and engineered to Create Security’s precise calculations and standards with a strong emphasis on high security, long term reliability, low maintenance and safety.

Our cantilever gate glides on an innovative 316 marine grade counterbalance roller system. The entire gate system is self-supporting without any ground tracks or overhead supports.

Cantilever gates are ideal for heavy traffic and haulage driveways or where ground surfaces are uneven. The maximum opening for a single cantilever gate is 12 metres. Bi-parting cantilever gates are ideal for larger span driveways of up to 24 metres.

Features

Gate Structure

  • High security
  • Spans up to 12 metres (or 24 metres for bi-parting cantilever gates)
  • Gate frame, support tower, back runner and end post are constructed from Australian made steel
  • All vertical bars are fully seam/fillet welded
  • Maximum spacing between bars is 125mm
  • Erected height is typically 1800mm from ground level (but can be designed to any height) with 140mm maximum ground clearance
  • Hot dipped, powder-coated or stainless-steel finish
  • Cantilever gate is supported by 316 marine grade counterbalance roller system
  • Form 15 and Form 16 optional

Motor, Gearbox, Controls

  • 100% duty cycle
  • Industrial 3 phase 75kw drive motor (powered by single phase)
  • Gate motor drive system has a programmable logic controller (PLC)
  • Frequency inverter will control the opening/closing speeds with ramp up and ramp down control technology. Typical speed settings are 450-940mm per second opening and 200-300mm per second closing

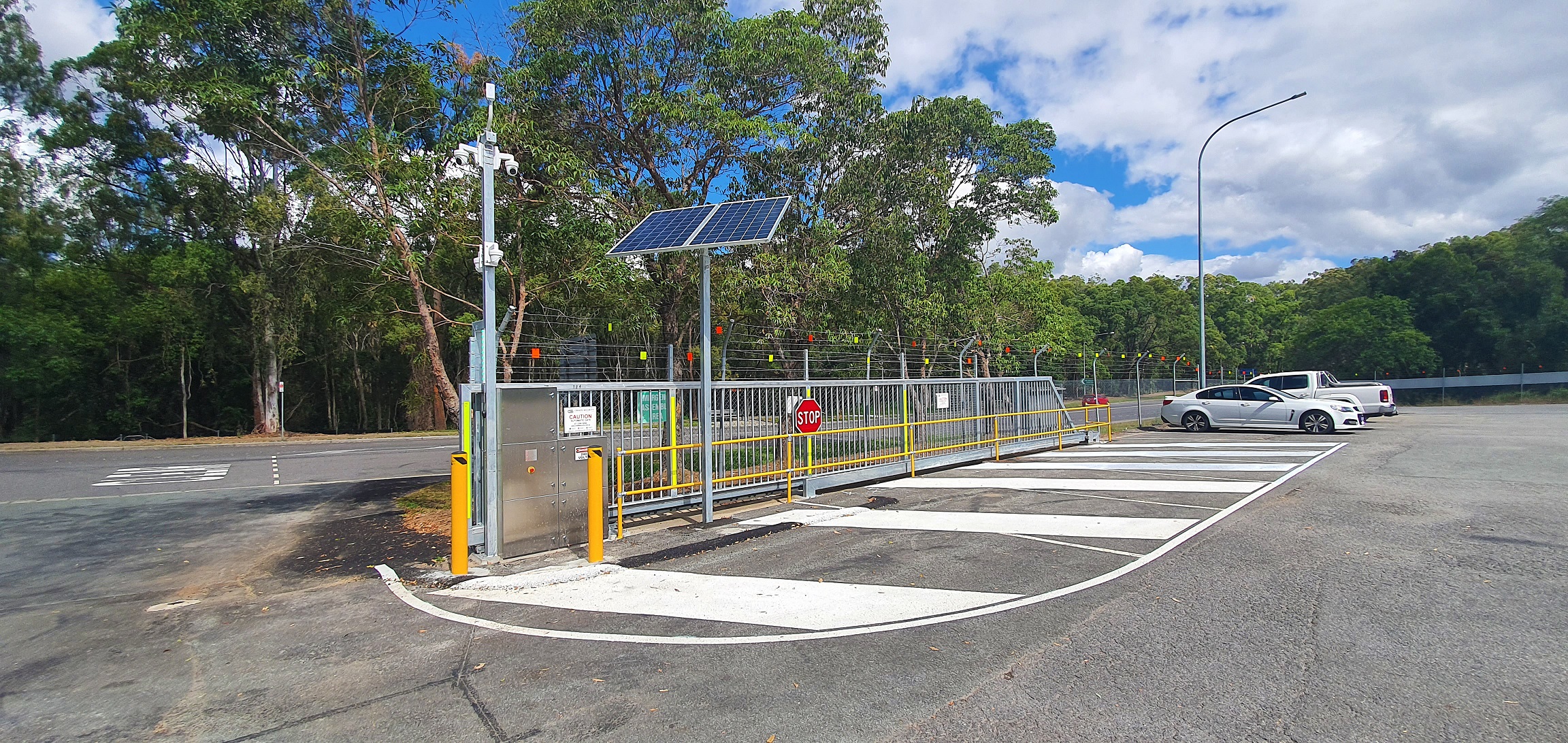

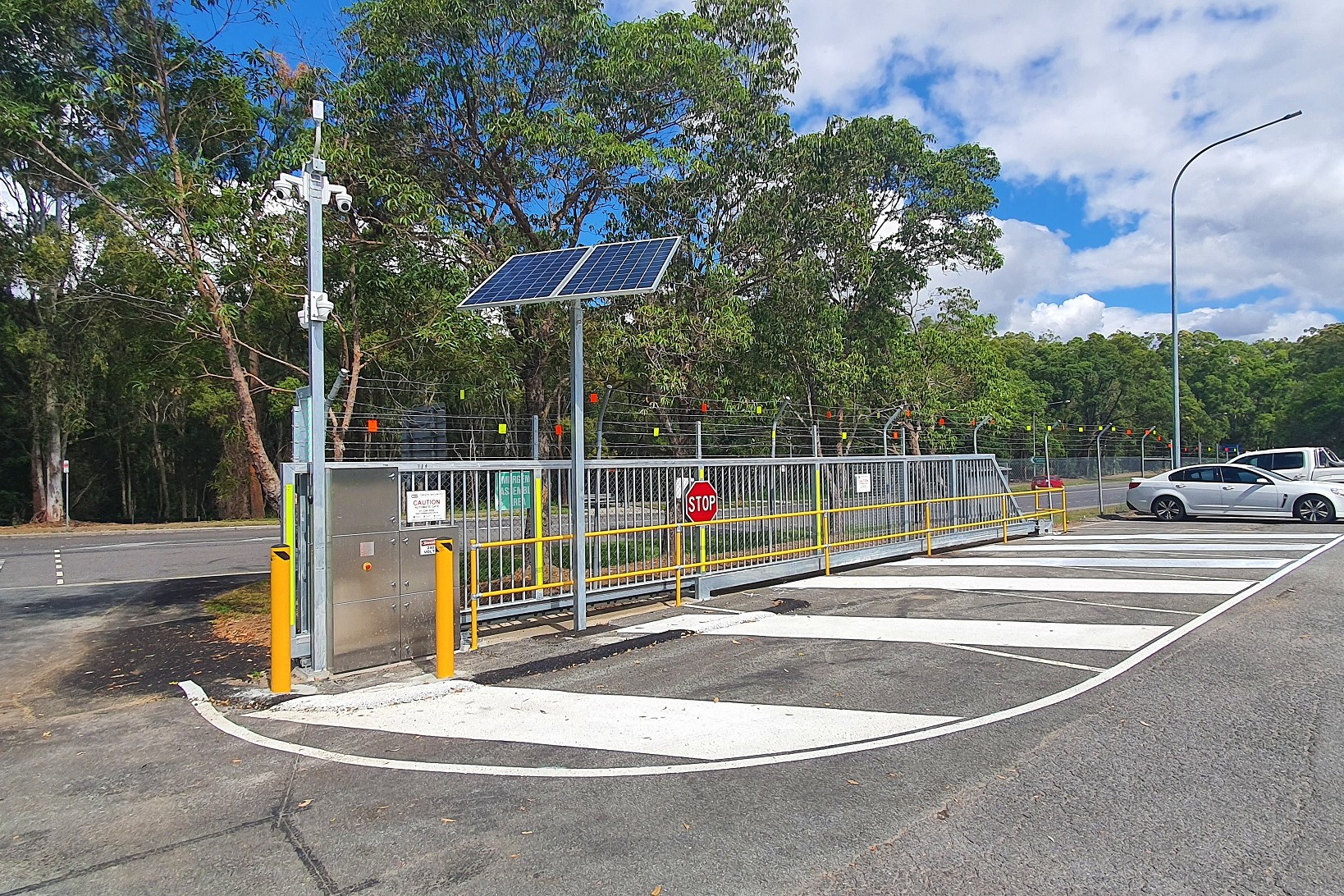

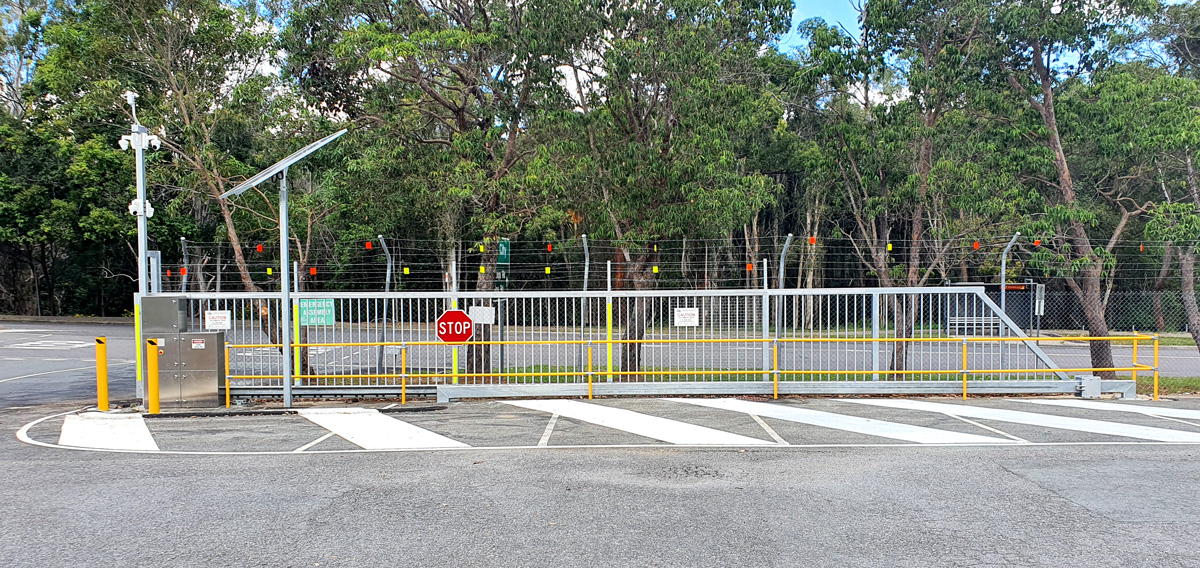

  • Solar powered operation available
  • Access Control or Smart Gate Interface Technology

Equipment Enclosure

  • Powder coated or stainless steel equipment enclosure
  • Lockable T-bar handles on enclosure doors
  • Troubleshooting LED mimic panel fitted to the outside of the equipment enclosure
  • A switching power supply is installed in each control logic module
  • A test button is installed in each equipment module enclosure

Safety Devices

  • All Create Security gate systems are compliant with current workplace health and safety standards
  • Gate leaf is fitted with 1.5 metres of safety mesh from the main portal structure to prevent pinch points
  • Gate system is fitted with a low voltage, audible buzzer to announce gate movement
  • Gate system is fitted with flashing LED amber low voltage lights as a visual alert to signify gate movement
  • Emergency stop button is fitted to the outside of the equipment enclosure
  • A manual override function for mechanical release in the event of power failure
  • Curtain array photo electric beam sensors on the inside and outside of the gate
  • Each gate control logic module is fitted with a main 240 volt lockable isolator

Qualifications and Credentials

Create Security holds all mandatory statutory licences and our quality and standards are supported by ISO accreditation and industry memberships.

Experience

With over 25 years experience in the physical security industry, Create Security systems are designed by industry experts and are supported by exceptional service and skilled workmanship.

Safety and Performance

Create Security systems are engineered with a focus on quality, safety and performance for a solution customers can rely on.

Service and Maintenance

Create Security offers highly reliable 24/7 breakdown service and support. Create Security can service and maintain all brands.

Warranty

Up to 3 year warranty (conditions apply).

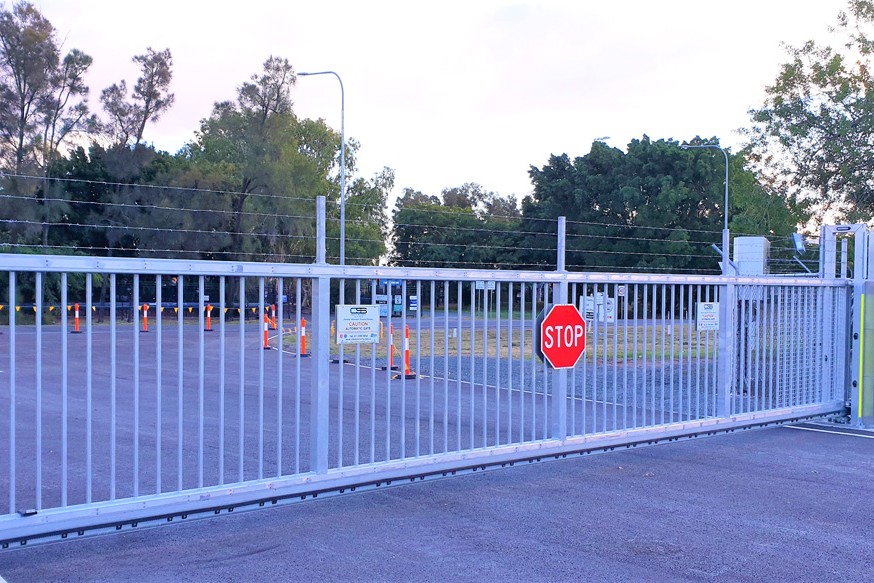

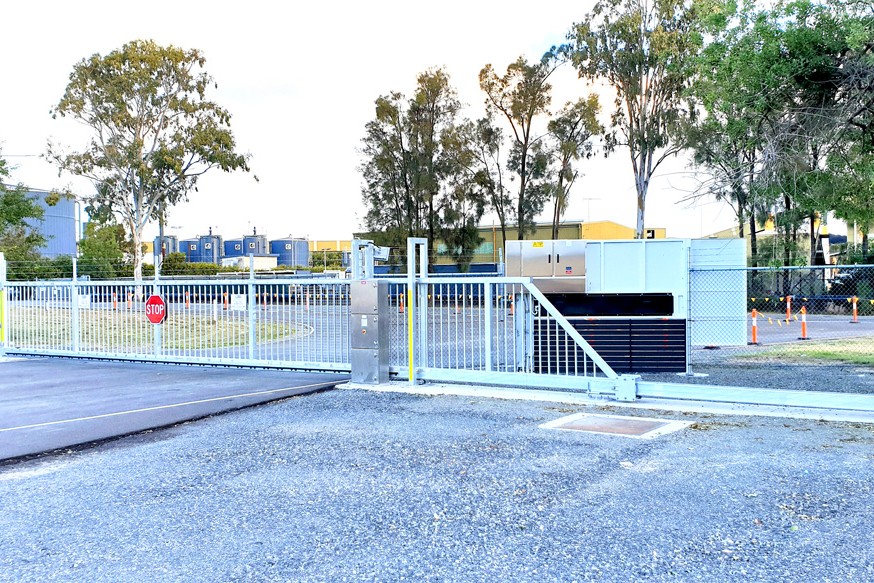

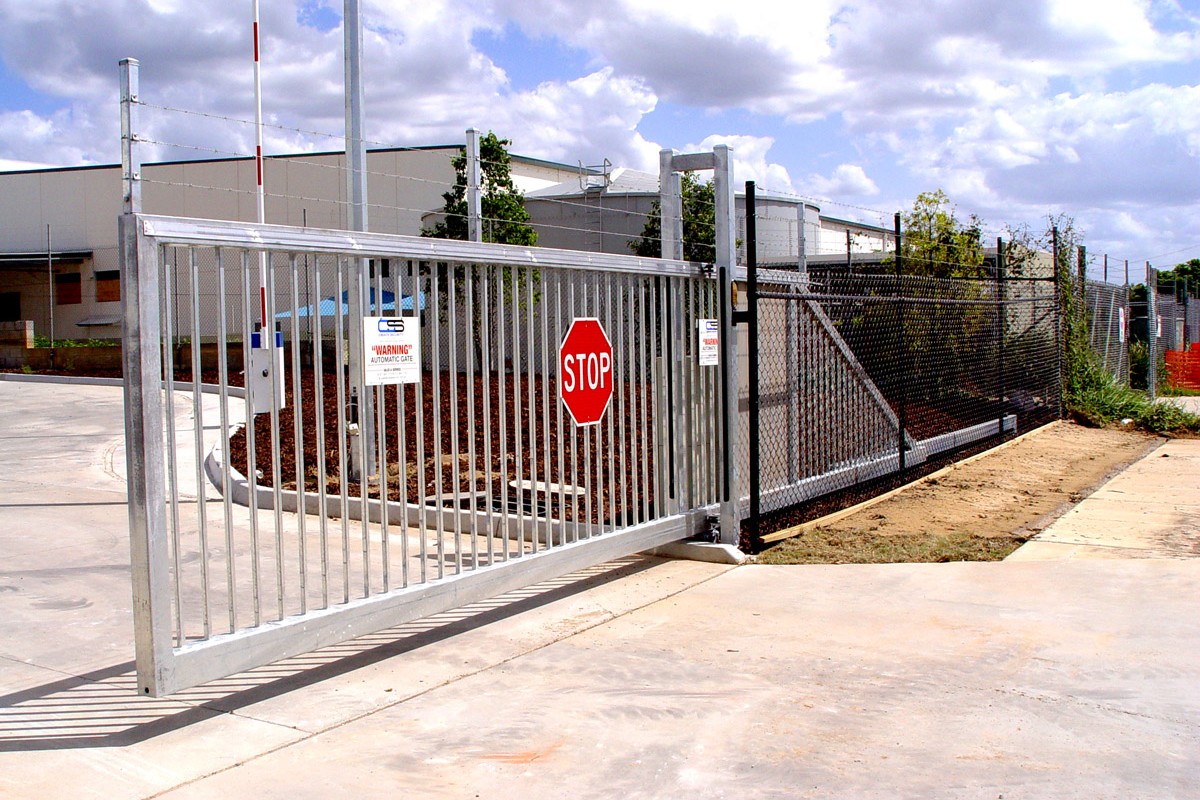

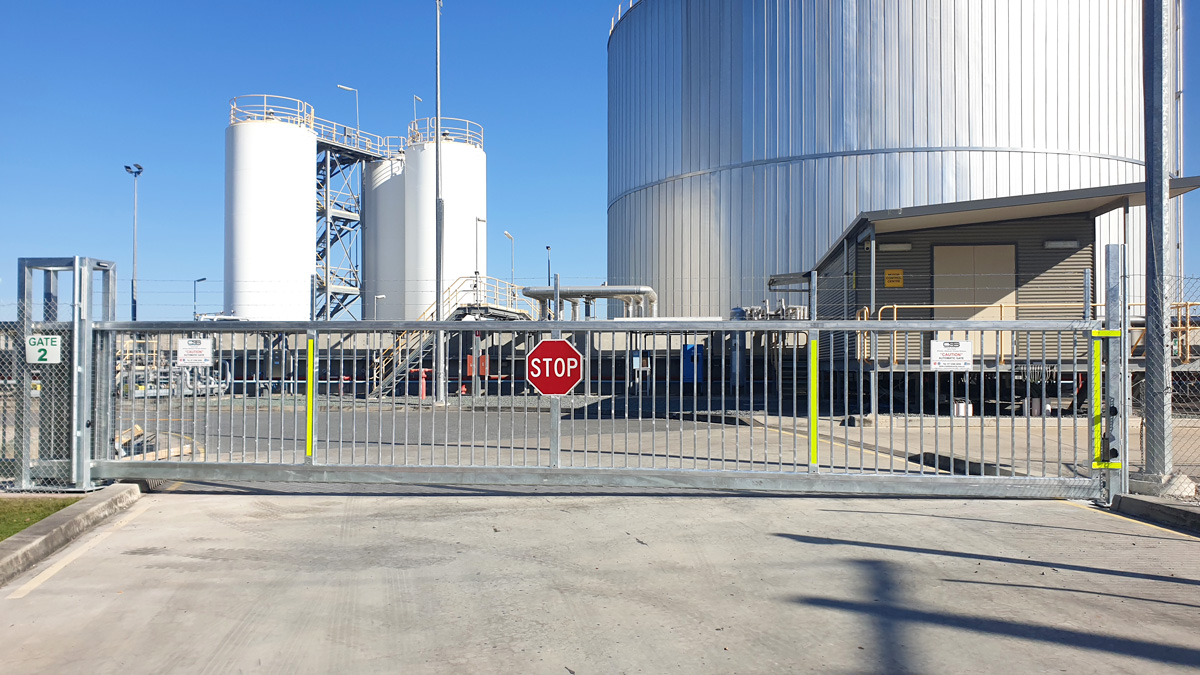

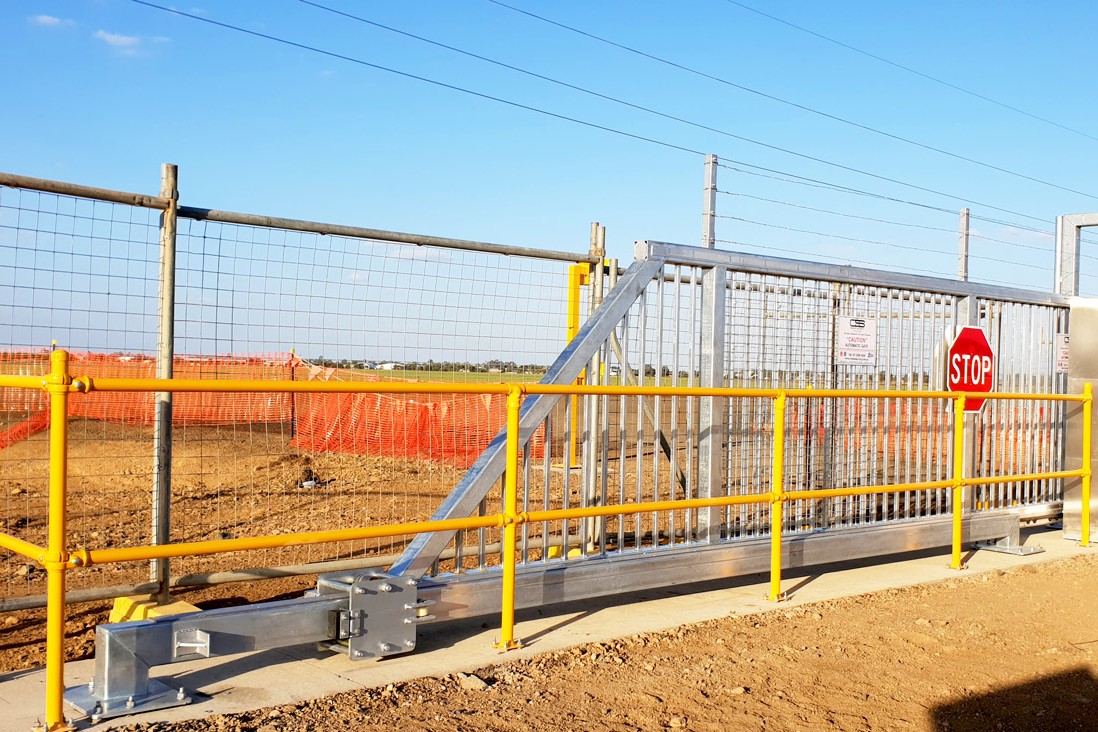

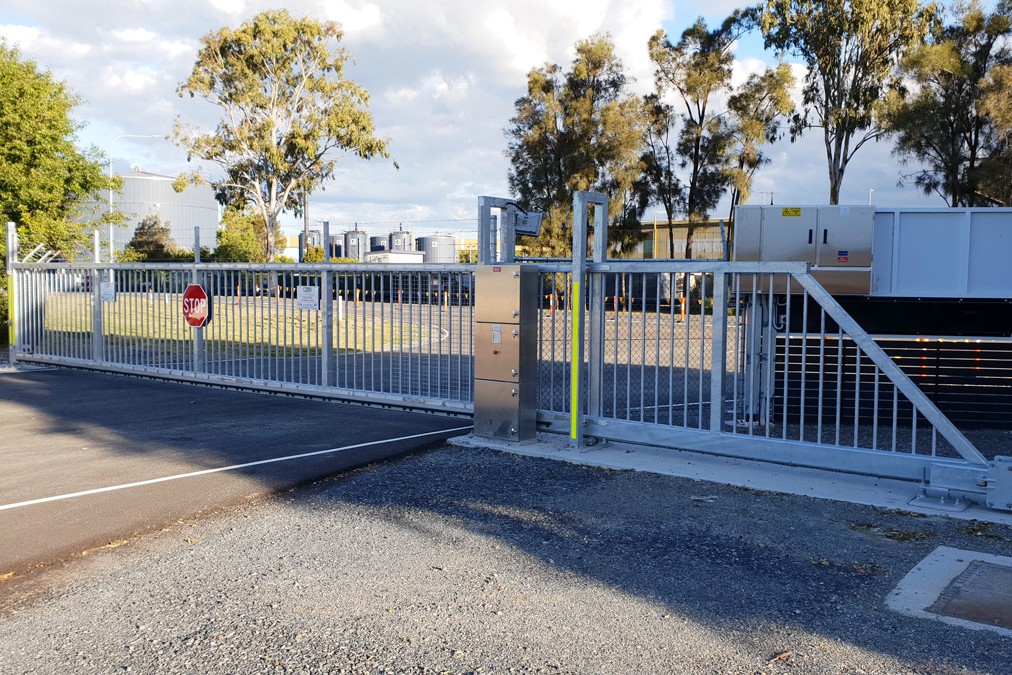

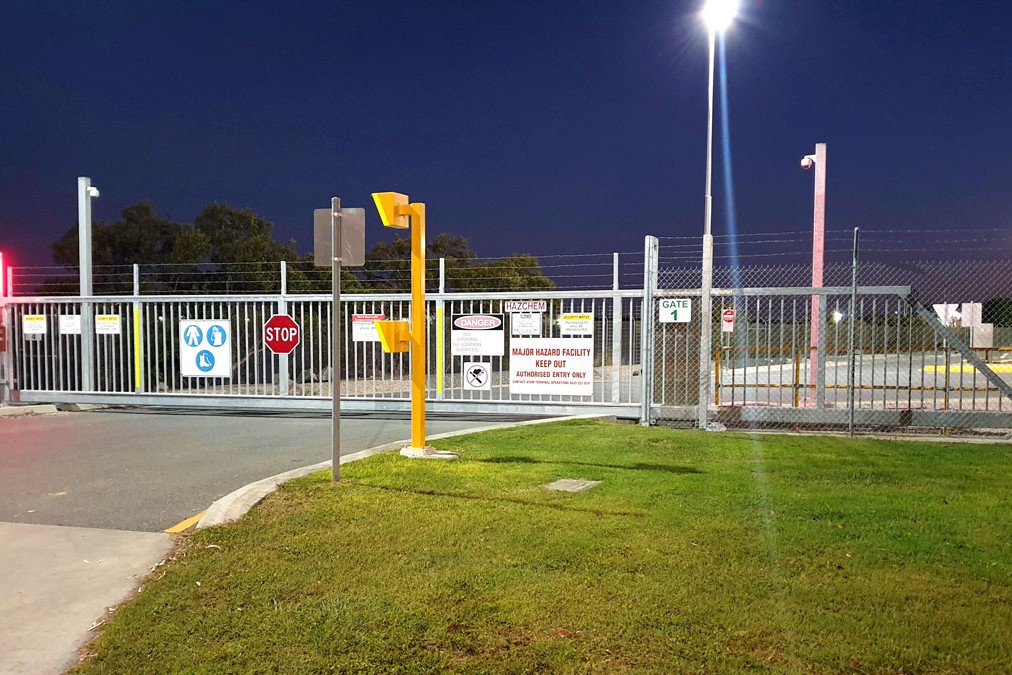

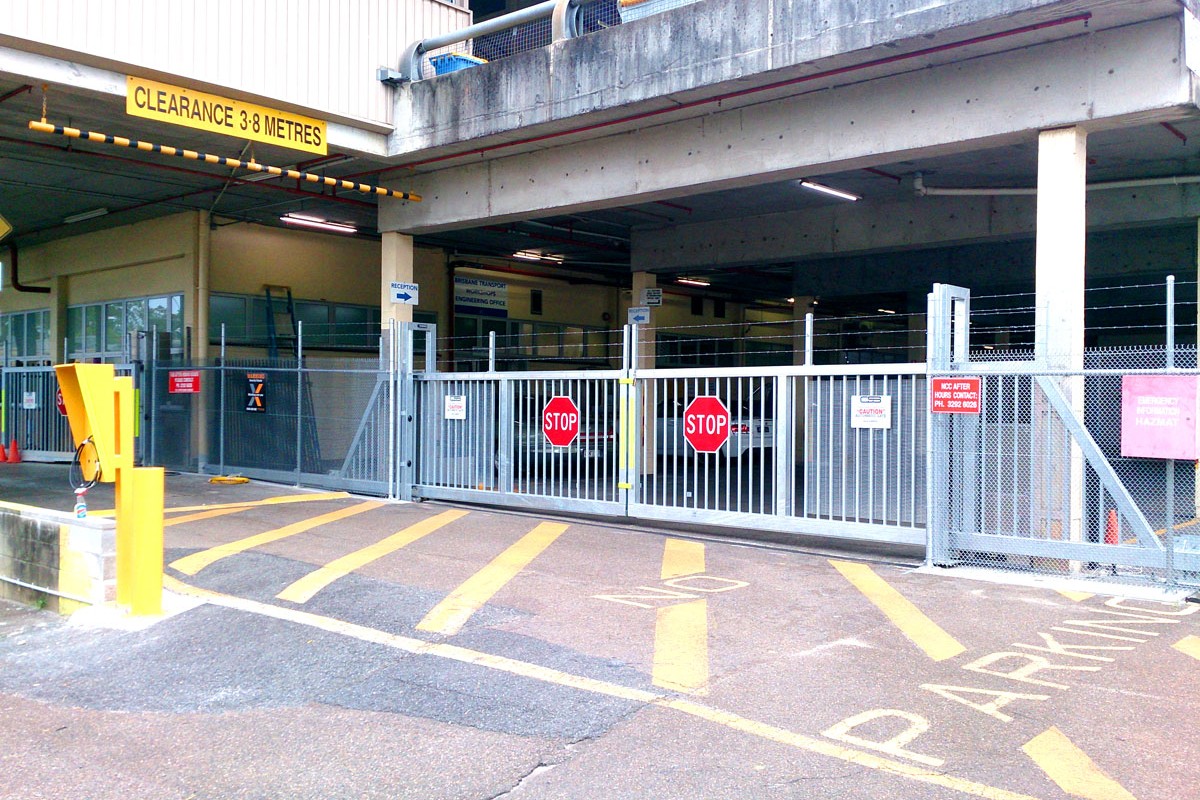

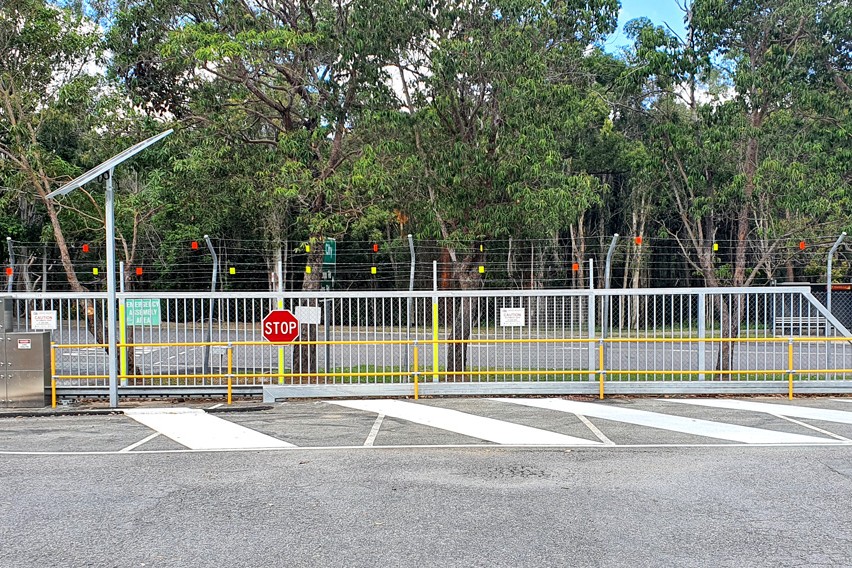

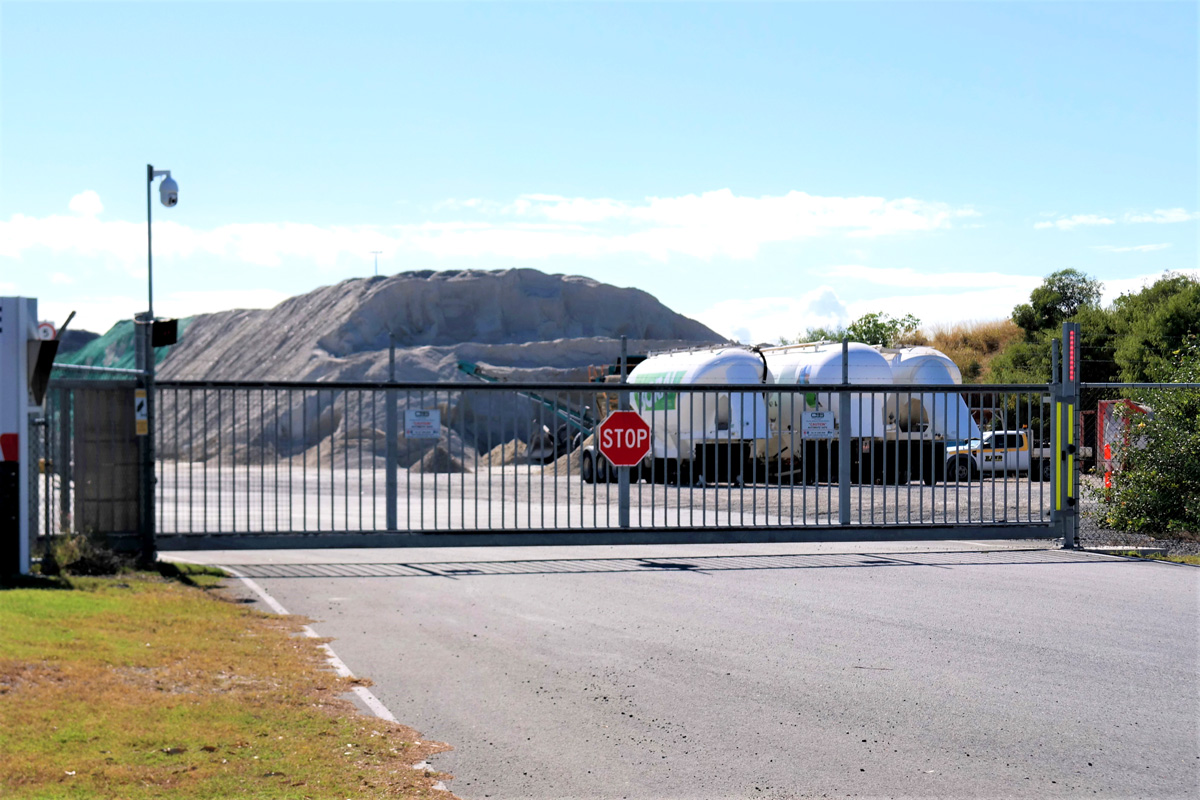

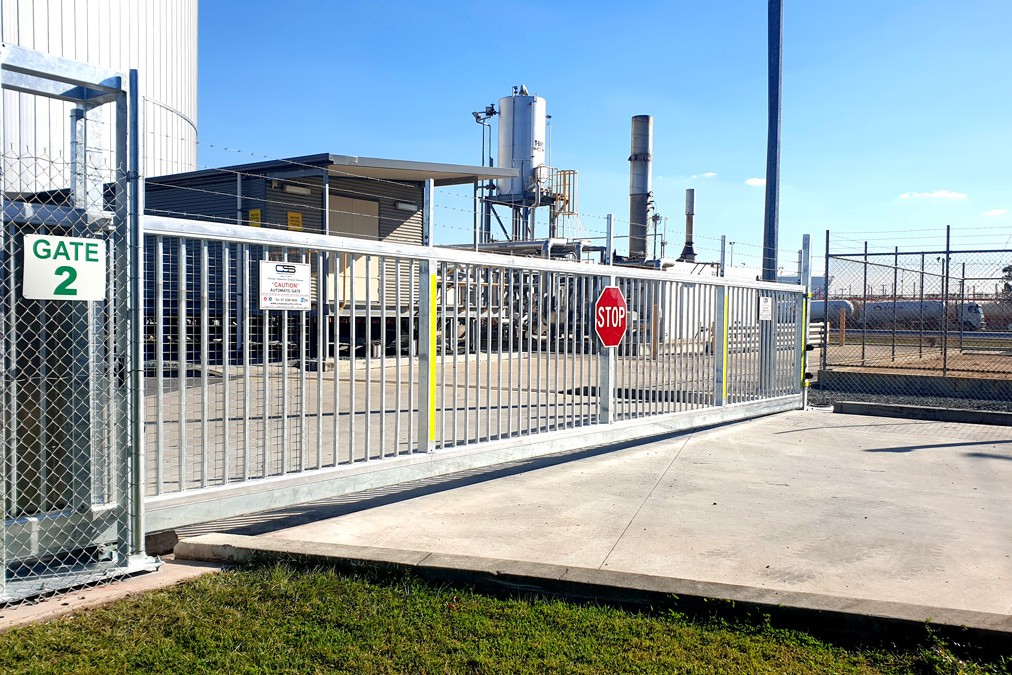

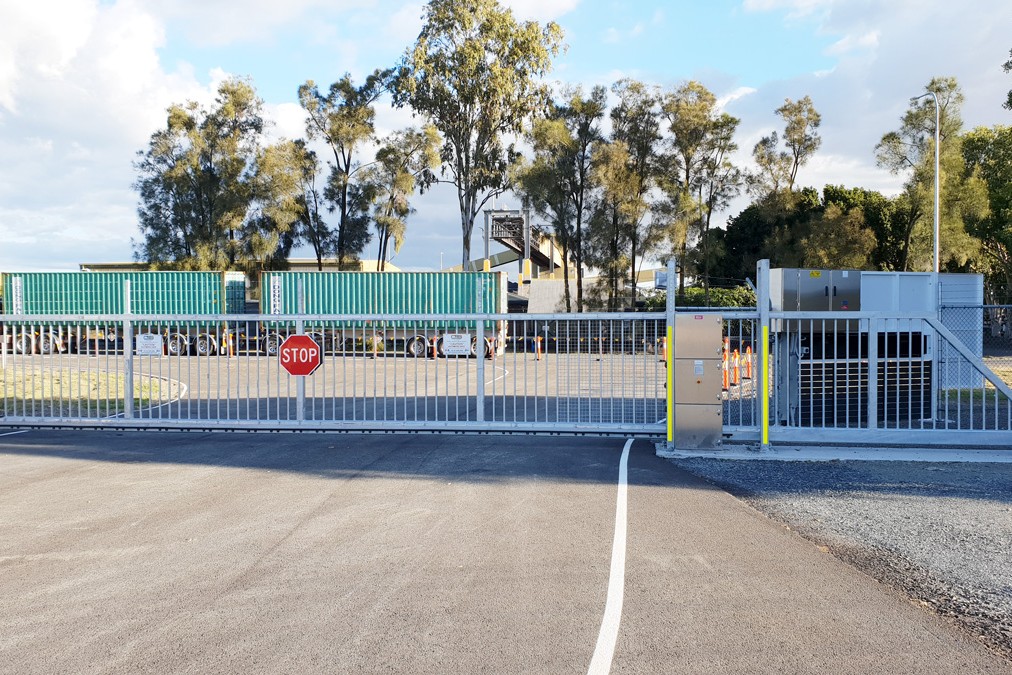

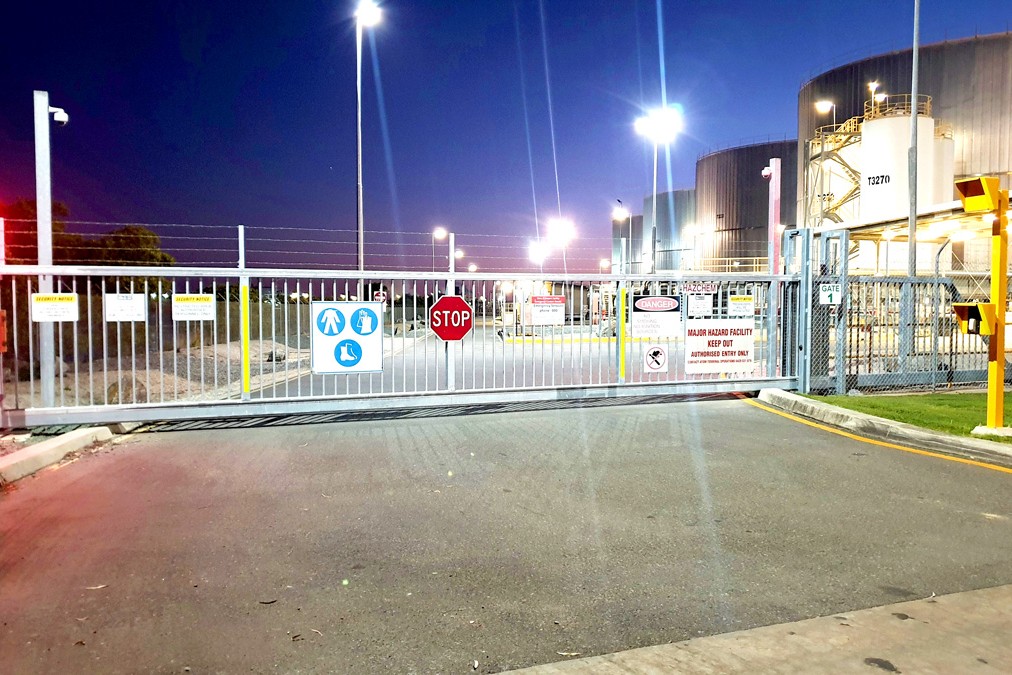

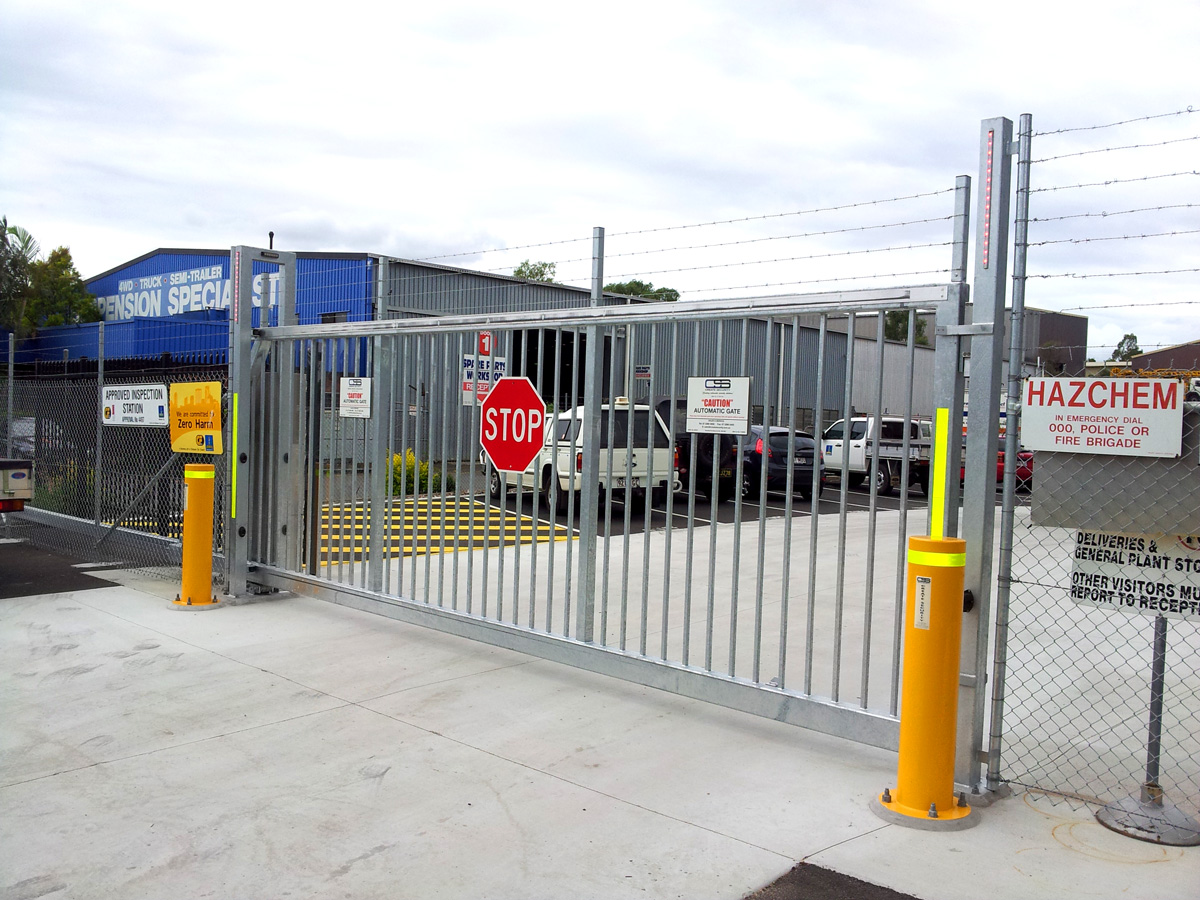

Product Gallery
