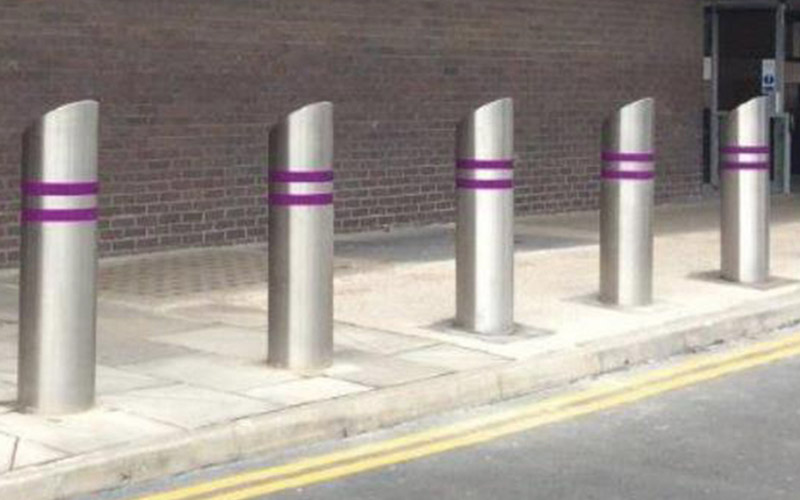

PAS68 Static Bollard – CR840ST
The CR840ST is a PAS68 rated static fixed or removable bollard. The locking system for the removable bollards are hidden within the bollard core and under the sleeve for added security. (With options for a 219mm, 273mm and 323mm bollard, these have been tested with the N2 7,500kg vehicle at 64kph)
Technical Specifications
- PAS68: V7500[N2]64/90:4.0/0 & V7500[N3]64/90:6.5/0 (219mm)
- PAS68: V7500[N2]64/90:3.3/0 (273mm)
- PAS68: V7500[N2]64/90:0.0/0 (323mm)
- Bollard tested with N2 & N3 7,500kg vehicle at 64kmh
- Diameter: 219/273/323mm
- Height: 1000mm above FFL
- Foundation: 750mm, plus 75mm blinding and allowance for 100mm topping
- Internal locking mechanism with hidden locks
- Painted, stainless steel, decorative or site specific bespoke sleeves available
- Static fixed and removable options
