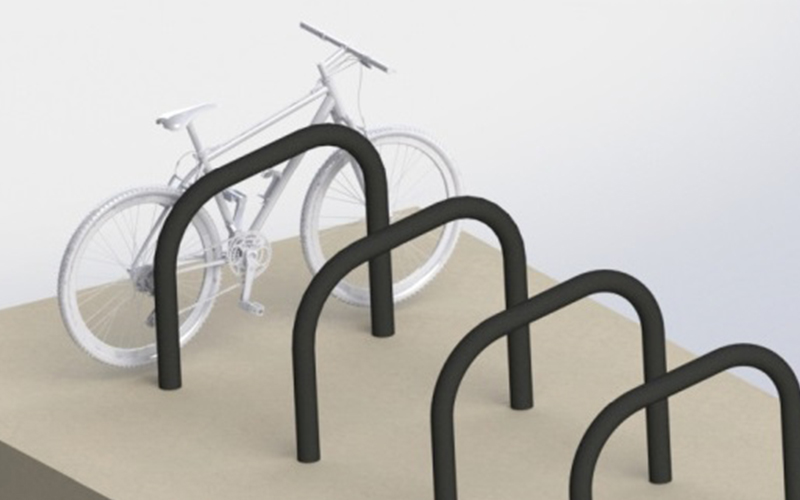

PAS68 Cycle Hoop – CR820CR

Categories ,

A zero penetration short height cycle hoop tested with the M1 3,500kg vehicle at 48kph. This product was extensively tested at 2 angles. Designed to complement existing street furniture. Shallow depth foundation of just 250mm. Available in a variety of heights (minimum 750mm above ground) . Available with gaps between 800mm and 1200mm. Suitable for securing bikes, scooters and motorcycles.

Contact us for more information

Technical Specifications

  • PAS68: V3500[N1]48/15:0.0/0.0
  • PAS68: V3500[N1]48/90:1.5/0.0
  • Bollard tested with N1 3,500kg vehicle at 48kmh
  • Height: 750mm above FFL
  • Optional Finishes: Hot dip galvanised (HDG), powder coated, wet painted, stainless steel
  • Foundation: 2000mm x 2000mm x 250mm
  • Supplied as a pair with all integral connections
  • No re-bar required
