Automatic Rising Bollards – CR850A

Categories , Tag

The CR850A provides formidable protection against vehicular attacks having been tested using the empty 18 ton European lorry. This provides superior protection than all bollards tested with the smaller N2 vehicle. It was fully tested at TRL with the N3 7.5 ton vehicle travelling at 80kph. The CR850A was tested as a single unit with a single foundation and is supplied complete with integral re-bar pre attached to the bollard making installation very easy.

The CR850A offers the ultimate in facility protection from a vehicular based attack.

Contact us for more information

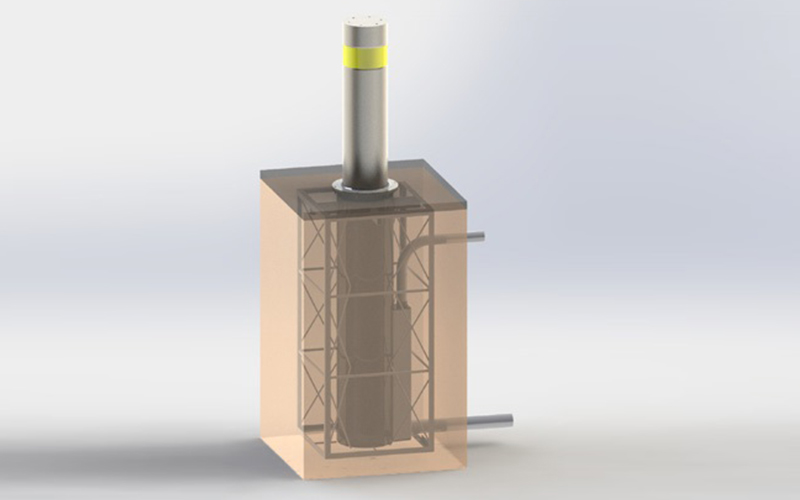

Technical Specifications

  • PAS68: 7500[N3]80/90:5.9/7.0
  • Impact tested as a single unit in a single foundation
  • Supplied with integral re-bar making installation simple and quick
  • 323mm diameter bollard when painted
  • Impressive and imposing 1200mm raise height above ground
  • Foundation: 2000mm
  • Optional Finishes: Hot dip galvanised (HDG), powder coated, wet painted, stainless steel
  • Continues to work after impact
  • Can withstand multiple attacks
  • Uses 3 phase power at 10amp
  • 100% duty cycle
  • Raises and lowers in circa 8-10 seconds
  • Can be supplied with LPS SR2 or LPS SR4 security cabinets if required
  • Supplied with a high performance control board
  • Works standalone, in unison with other products or as a tiger trap
  • Can also be used as a manual system via drill or hand-pump
