240 Volt Boom Gate

240 Volt Boom Gate | CODE: CR8EBG
Product Description

Create Security’s heavy duty 240 volt boom gates are recognised for their superior quality, high performance and safety. The CR8EBG is designed for continuous operation in high traffic applications such as car parks, shopping centres, schools, apartment complexes and airports. 100% duty cycle with unlimited daily operations and a lifecycle of up to 10 million operations. The boom gate barrier is driven by a durable and low maintenance torque drive electric motor and lever system. This technology allows for adjustable short opening and closing speeds without the boom gate bouncing in the end position. The boom gate cabinet is available in powder coated mild steel or stainless steel. The boom arms can be fitted to either the right or left hand side of the housing and boom arms are available in up to 6 metre lengths and able to cater for up to 12 metre spans. Simplicity of design matched with rugged engineering and powerful logic controller makes the CR8EBG from Create Security the number one choice for controlling traffic flow and perimeter security in high traffic industrial and commercial settings.

Features

Motor

  • 80w geared motor
  • 100% duty cycle
  • Voltage: 240 volt/AC or 24 volt/DC
  • Frequency: 50 Hz
  • Power Consumption: 80 Watts

Boom Arm

  • Size: 3.0m – 5.7m
  • Open/Close Time: 2.7-5 seconds
  • Profile:  Octagonal telescopic aluminium pole
  • Fitting:  Can be fitted to either the right or left hand side of the boom gate cabinet
  • Colour:  White with reflective safety markers



  • Cabinet Size:  Length 1m, Width 35cm, Weight 45kg

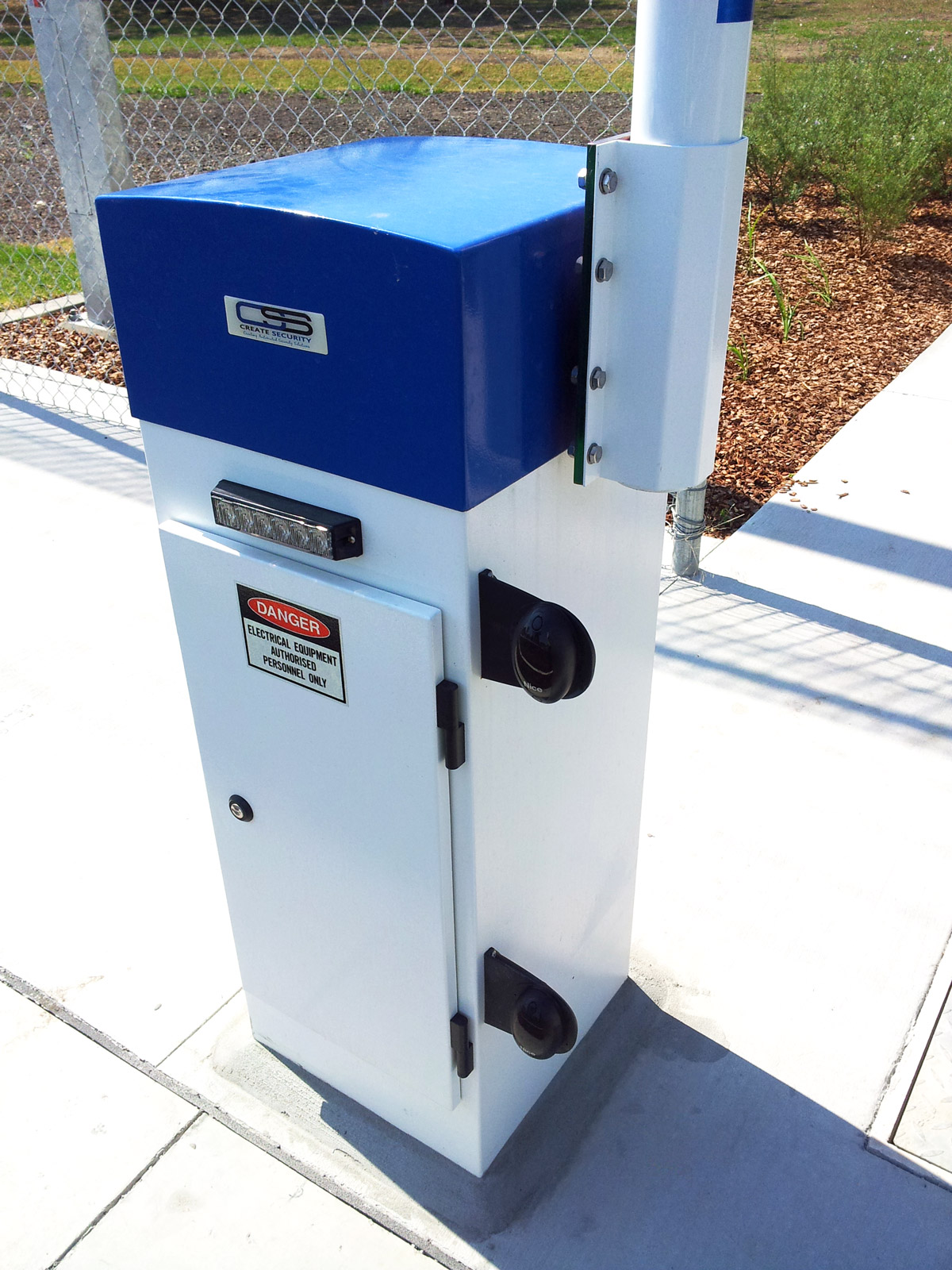

  • Cabinet Design: 2mm zinc primed and UV stable, powder coated and waterproof.  The standard cabinet powder coated colour is white with a blue top.
  • Access Control Options:  Boom gates can be operated in several ways include: Proximity Cards, Keypad Access, Remote Control, Mobile Phones (via a Smart App) and Intercom.  All boom gates can be programmed to automatically open and close at specified times.
  • Manual Control:  If there is a loss of power to the boom gate, the boom arm can be lifted easily by hand and locked in the open or closed position.
  • Installation:  Boom gate system is elevated off the ground and non-shrink grout is applied under the base for water proofing and vermin control.

Safety Devices

  • Lever arm system locks the boom at both end positions.
  • Automatic boom raise in the event of power failure or fire alarm.

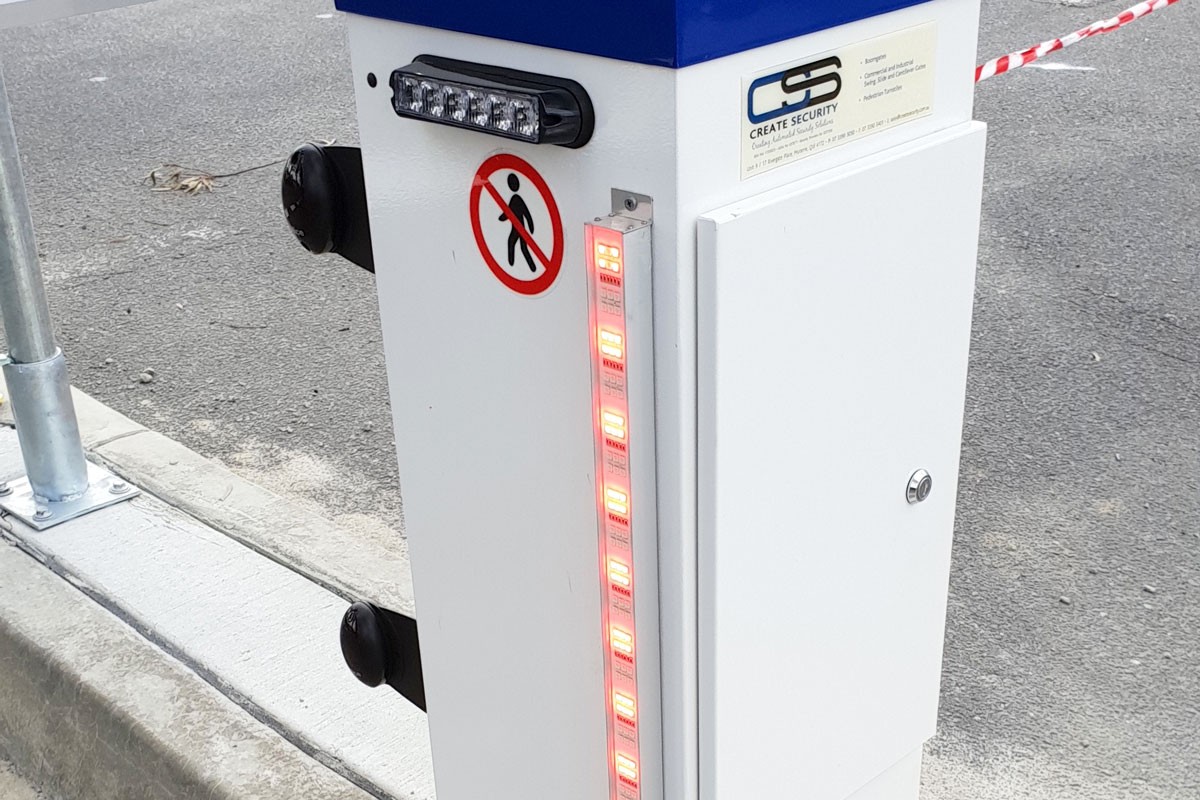

  • Photoelectric Beams:  Curtain array photoelectric beams will prevent the boom arm lowering on vehicles or pedestrians if they are below the boom arm during the close cycle. This is an important safety feature where pedestrian safety is paramount.
  • Audible Buzzer:  An audible alert signifying that the boom arm is in operation.

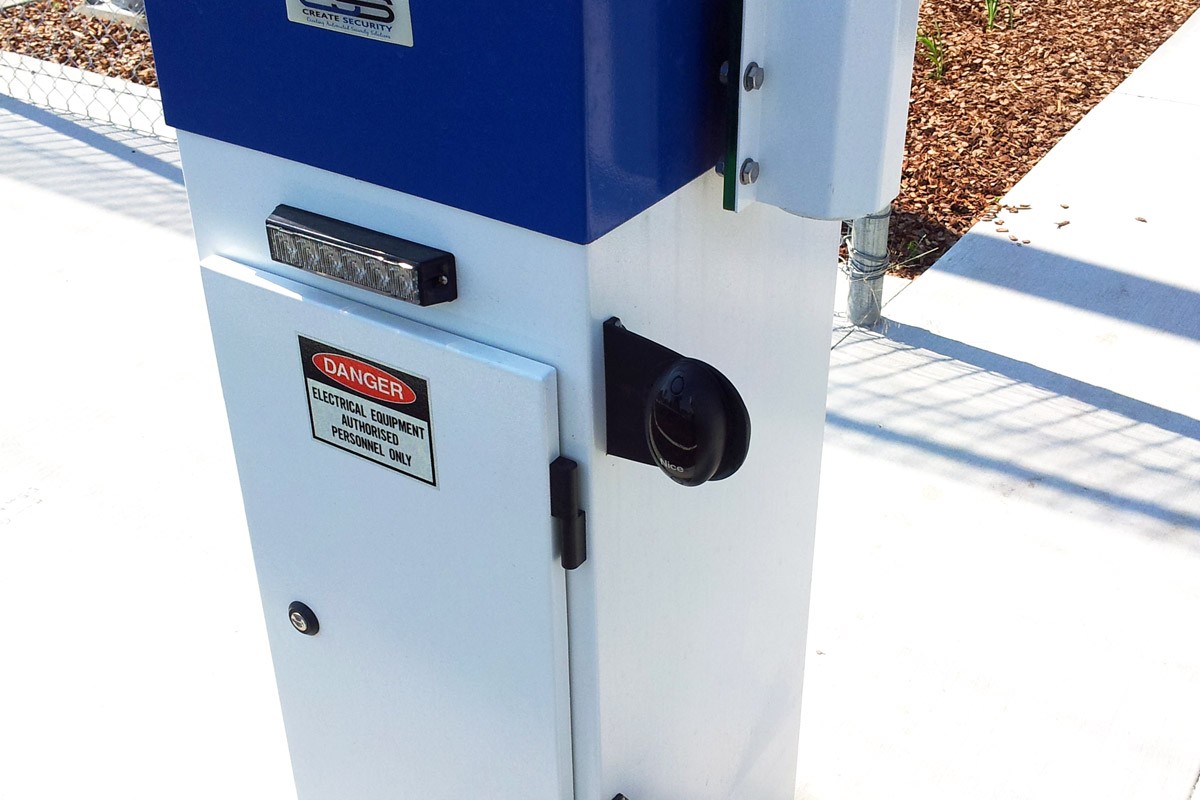

  • Amber LED Flashing Light:  A visual alert showing that the boom arm is in operation.

Optional Extras

  • Battery Back Up (24 volt/DC system only):  An in-built battery back-up system will ensure your boom gate continues to work for 4-5 days without mains power. This ensures your car park security always remains operational.

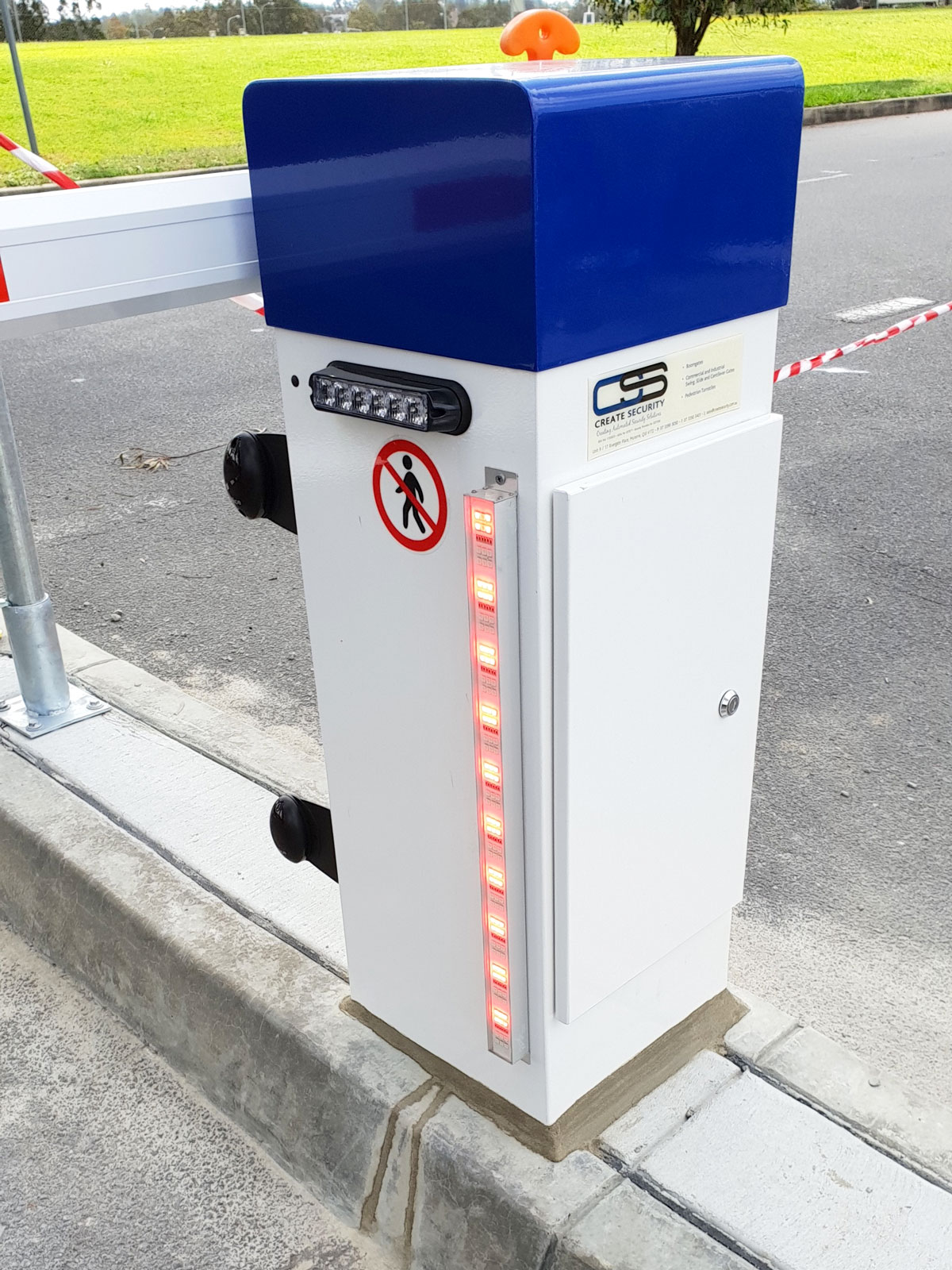

  • LED Safety Lights:  Visual red/green LED light bars can be added as a visual aid to assist with traffic flow. The red light stays on when the boom arm is down, and the green light is activated when the boom gate is opened.
  • Free To Exit Loop:  When a vehicle is detected to be exiting the car park, the boom arm will immediately open and will automatically close once the vehicle is no longer detected.
  • Magnetic Boom Arm Lock:  100kg magnetic holding force to reduce the risk of unauthorised entry or exit by lifting or bending the boom arm.

Qualifications and Credentials

Create Security holds all mandatory statutory licences and our quality and standards are supported by ISO accreditation and industry memberships.

Experience

With over 25 years experience in the physical security industry, Create Security systems are designed by industry experts and are supported by exceptional service and skilled workmanship.

Safety and Performance

Create Security systems are engineered with a focus on quality, safety and performance for a solution customers can rely on.

Service and Maintenance

Create Security offers highly reliable 24/7 breakdown service and support. Create Security can service and maintain all brands.

Warranty

Up to 3 year warranty (conditions apply).

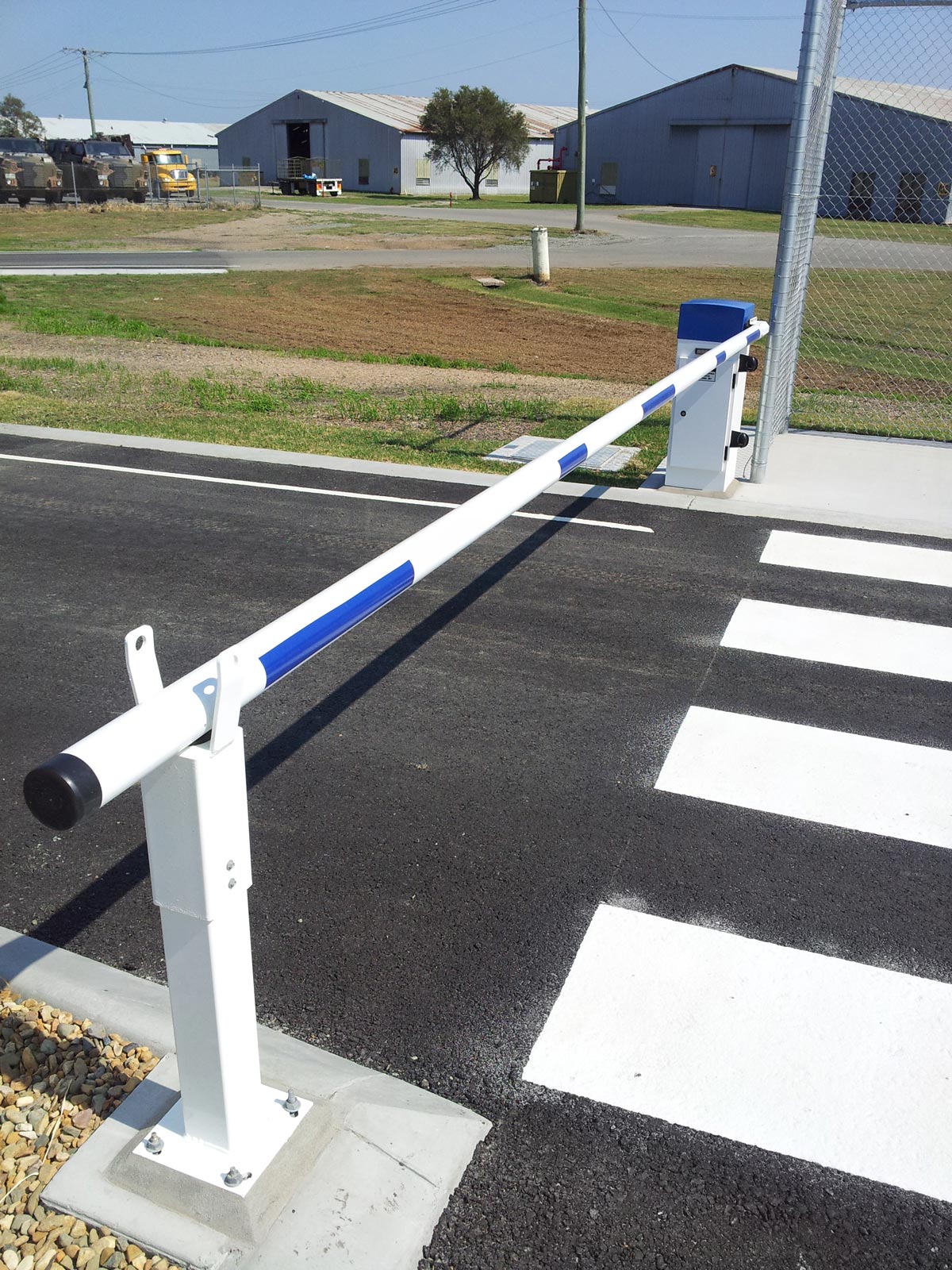

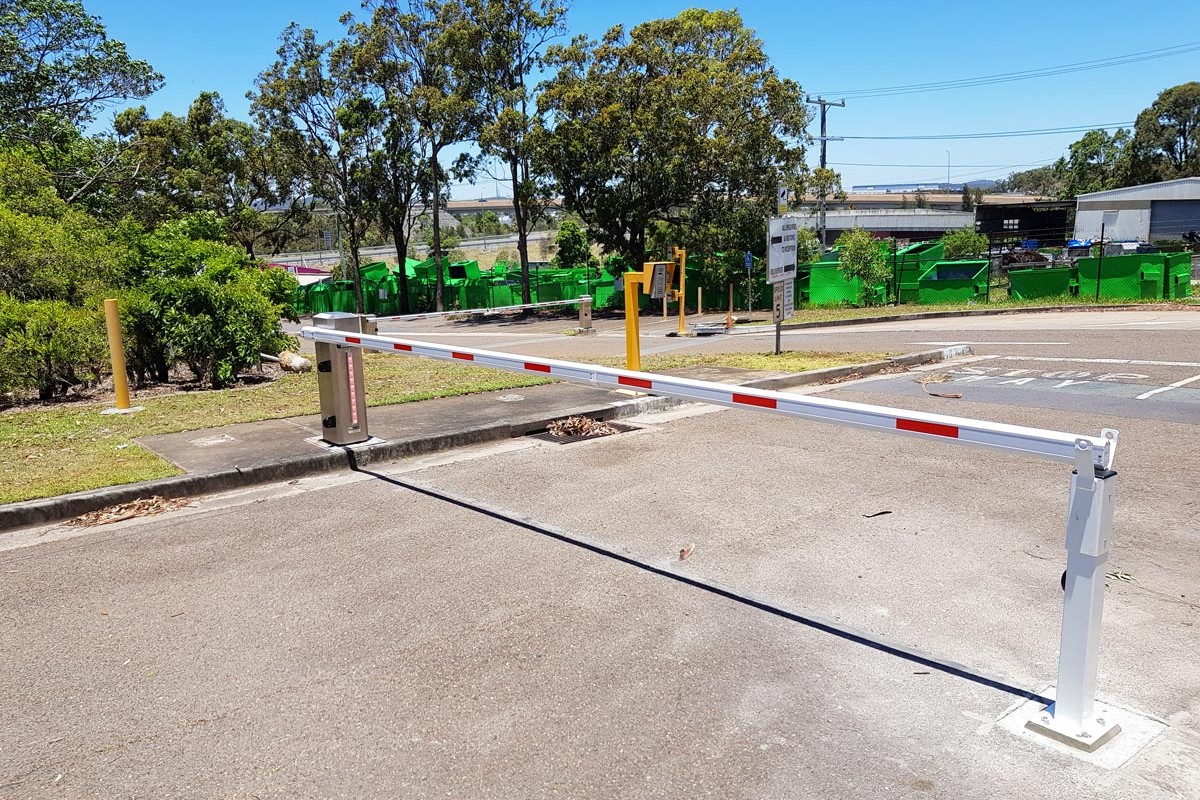

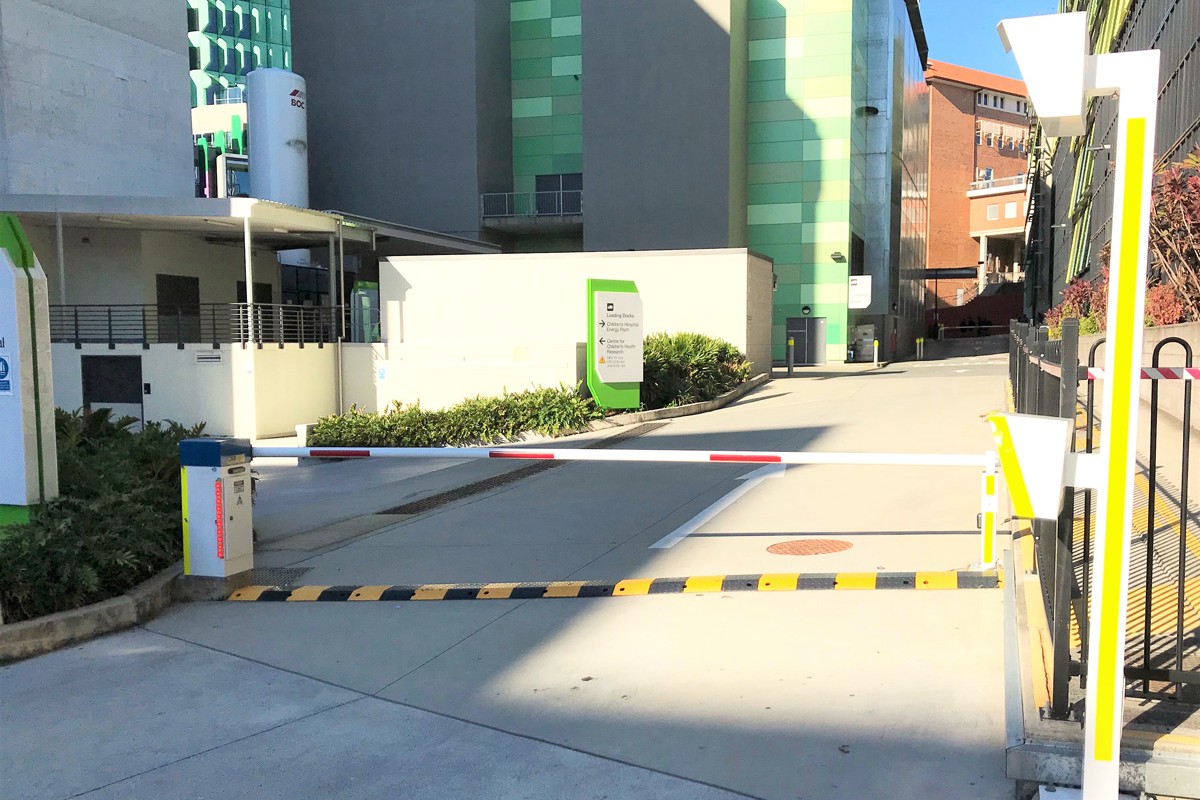

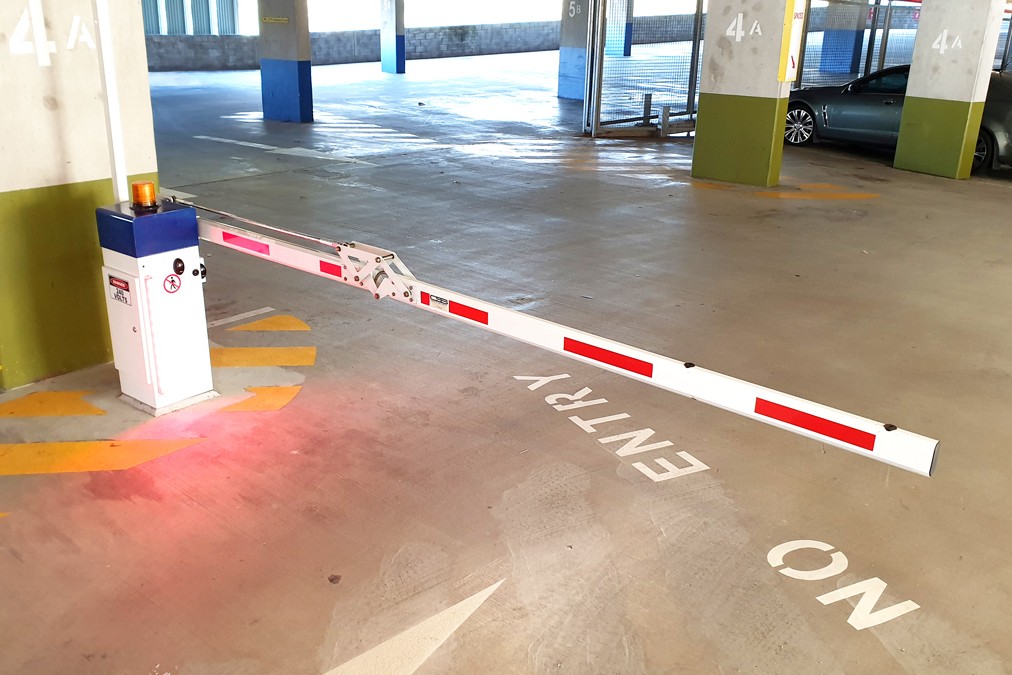

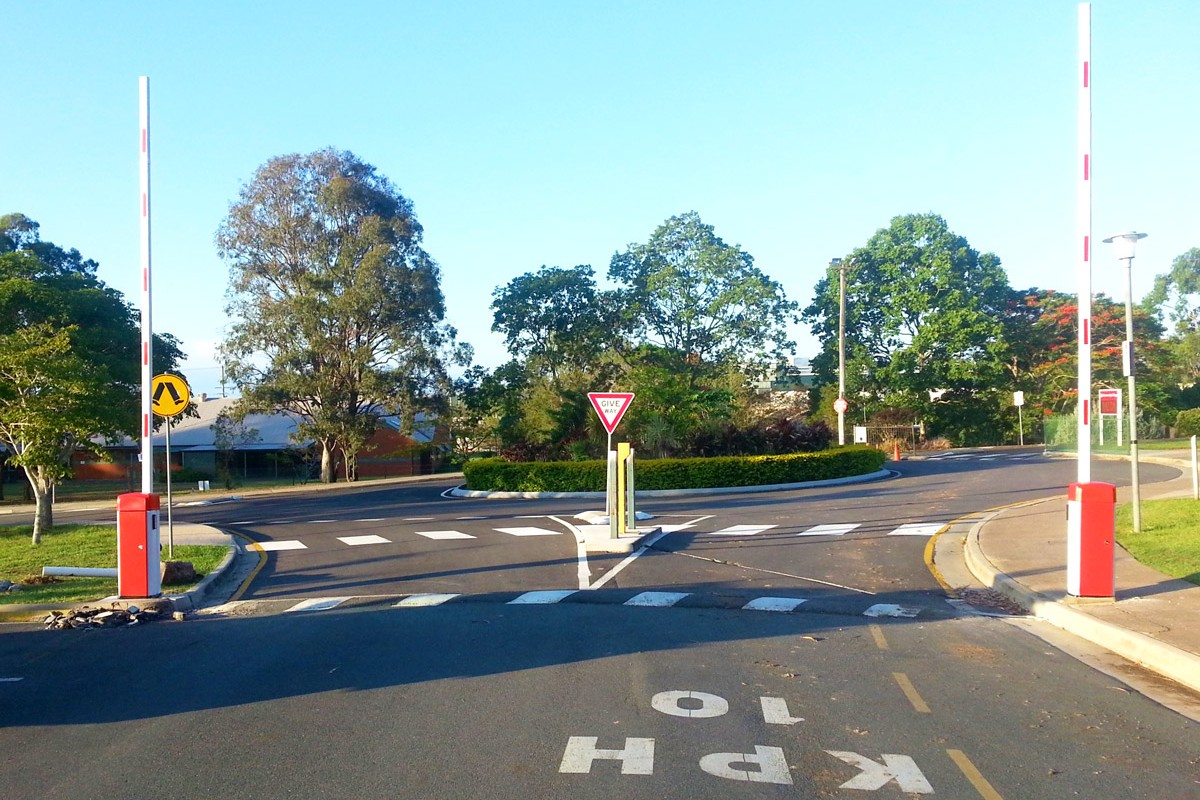

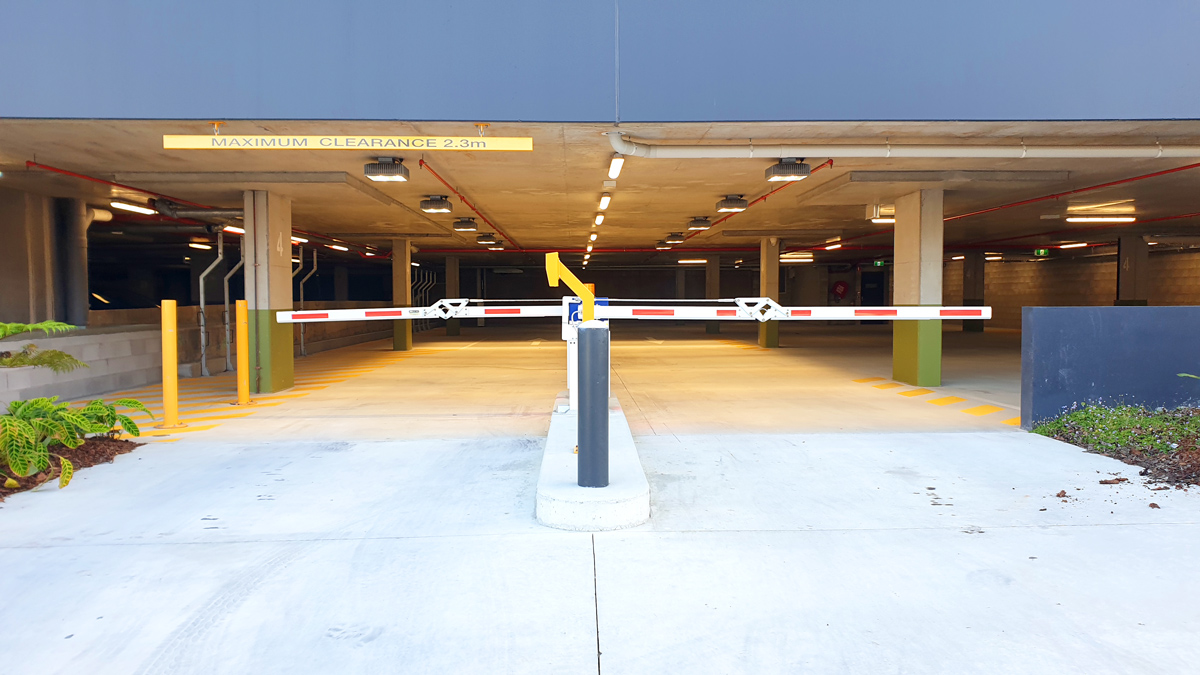

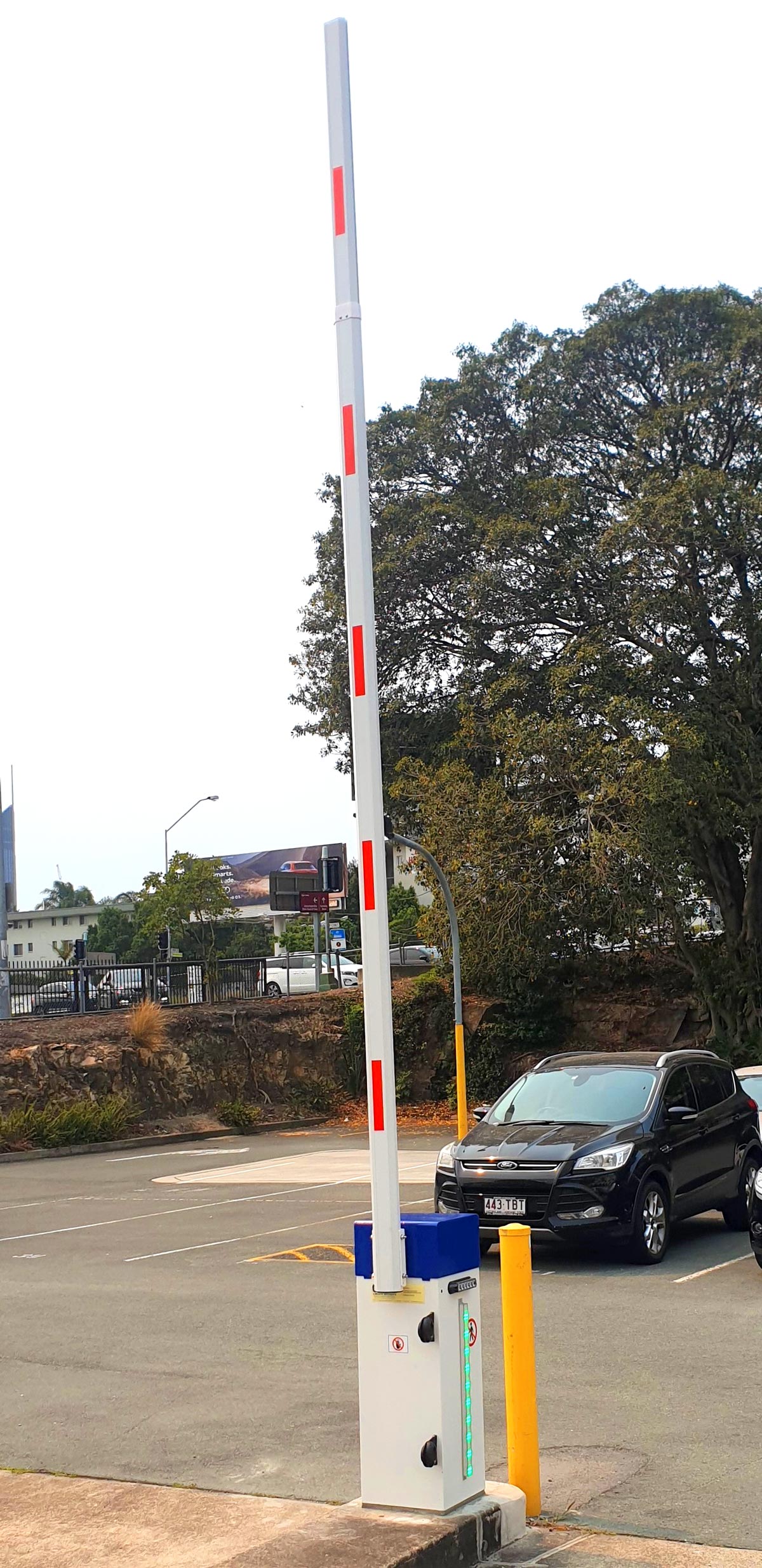

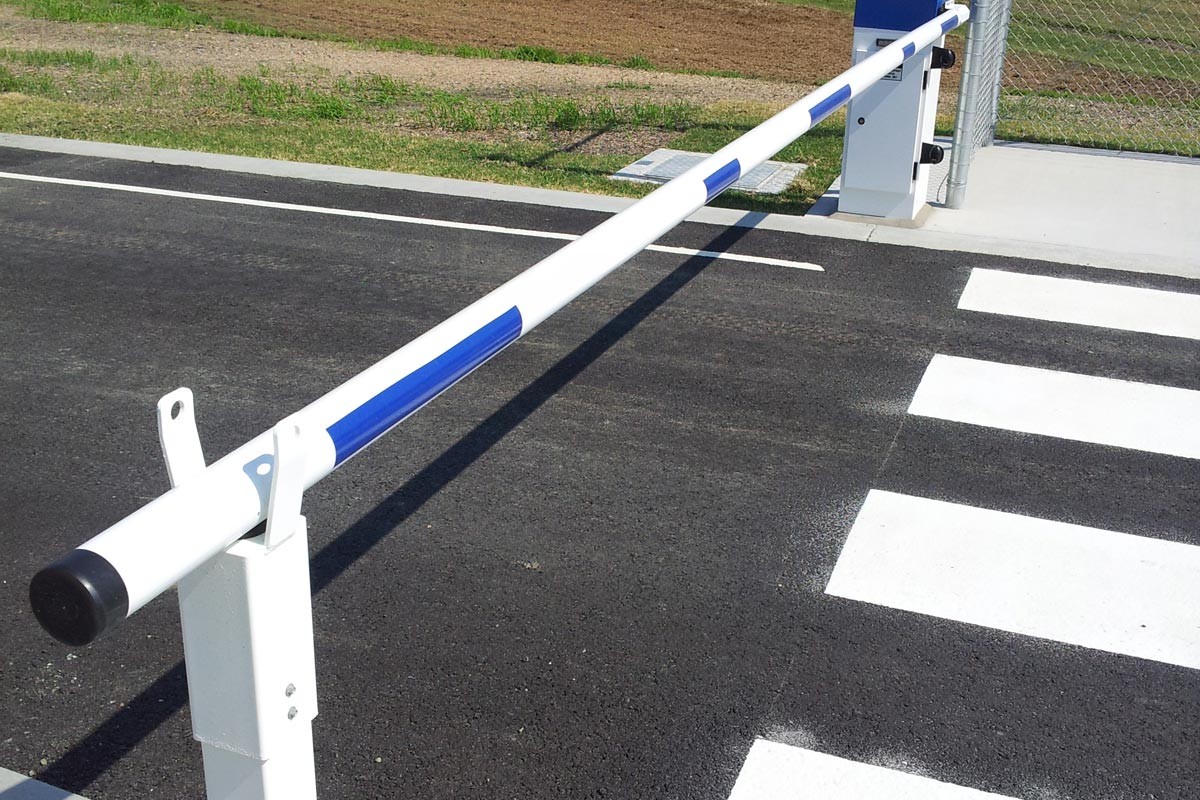

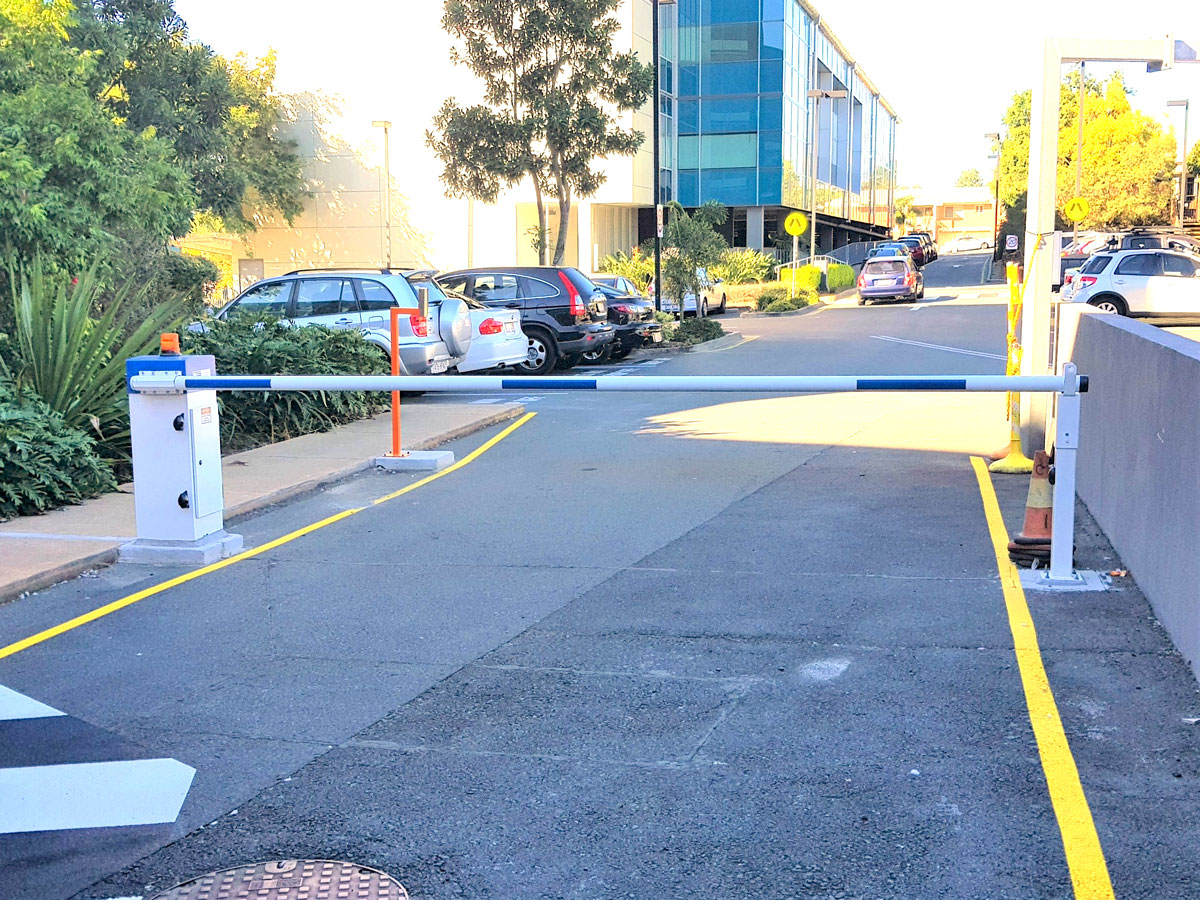

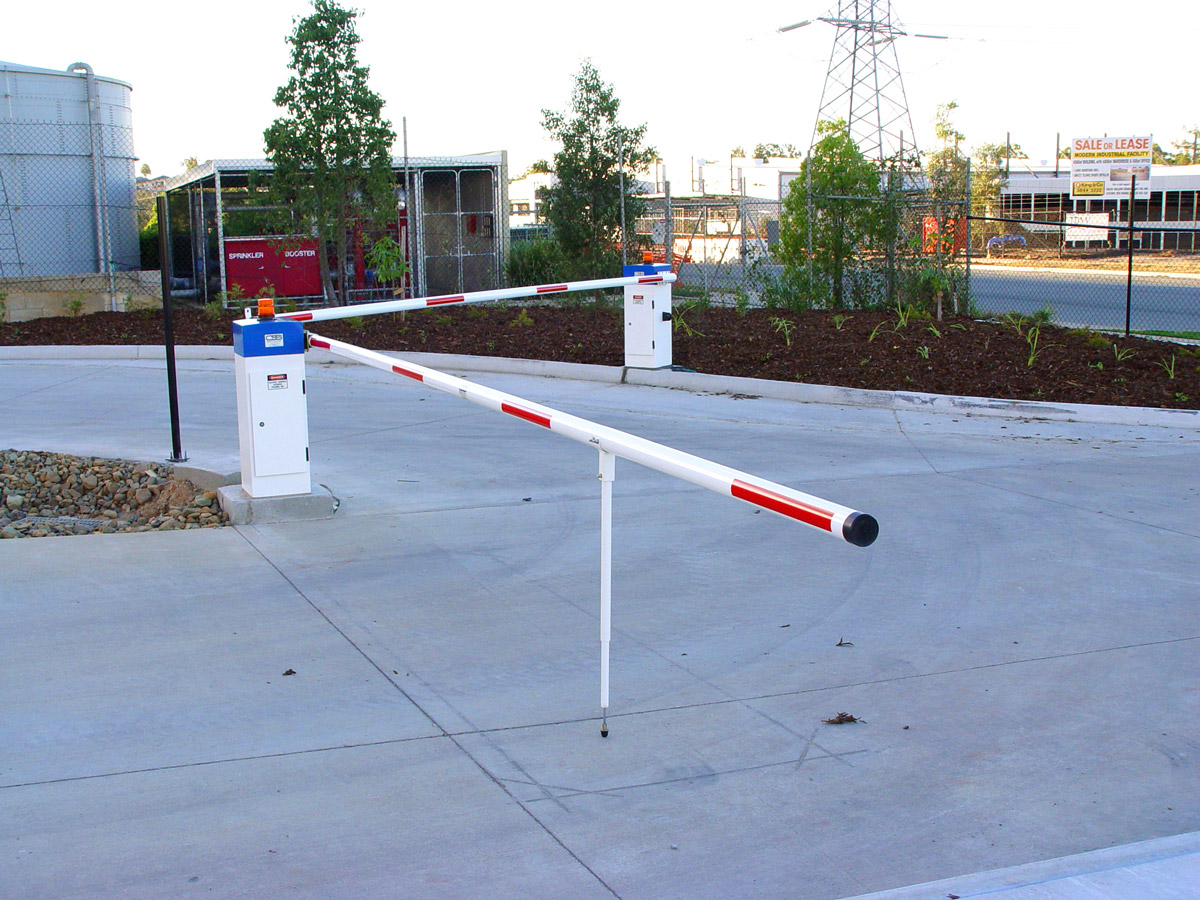

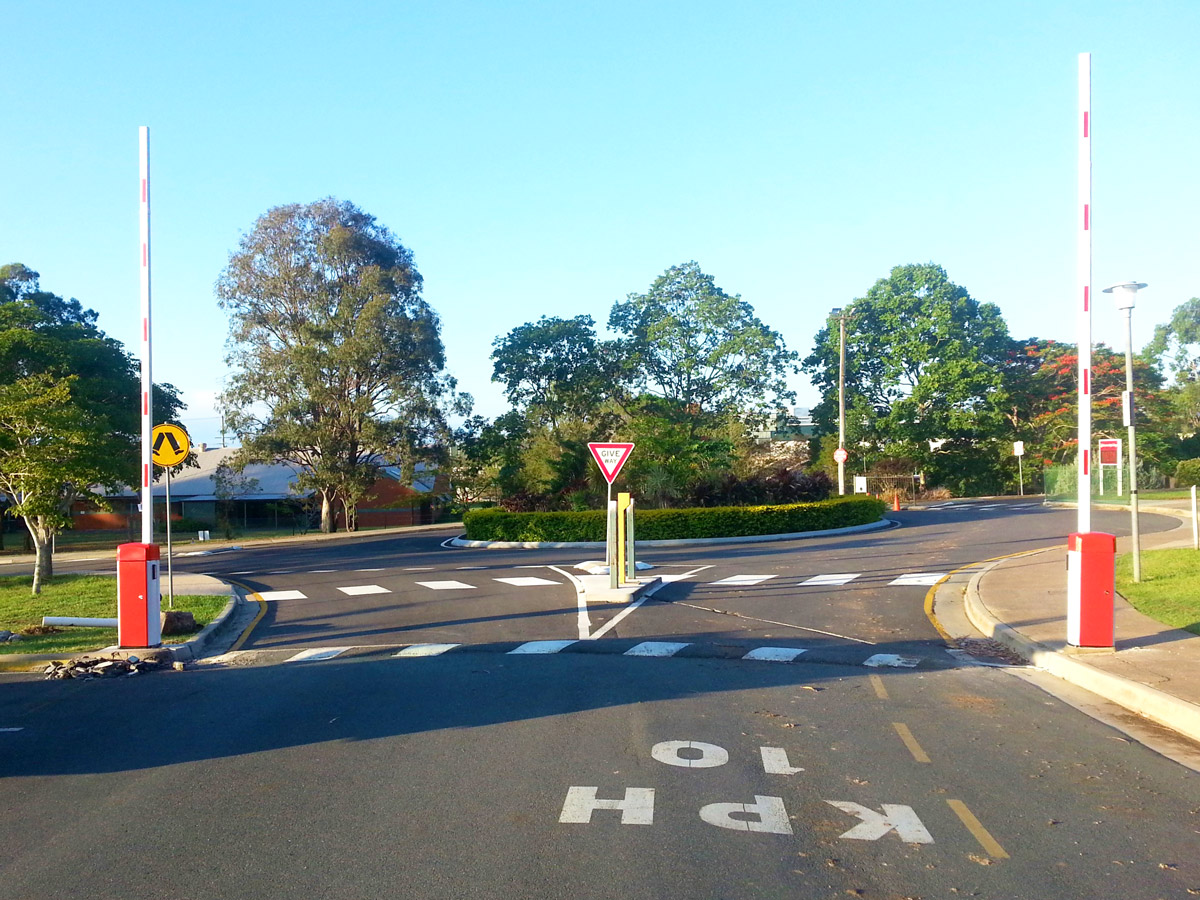

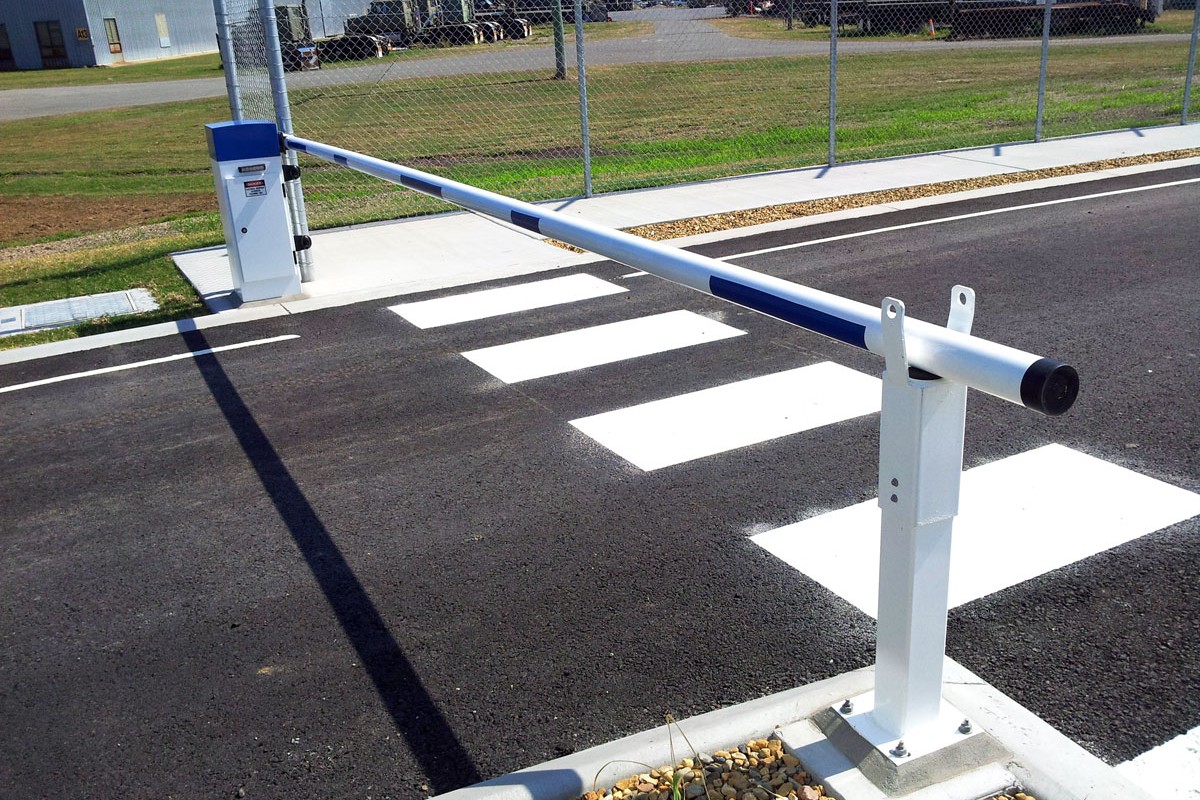

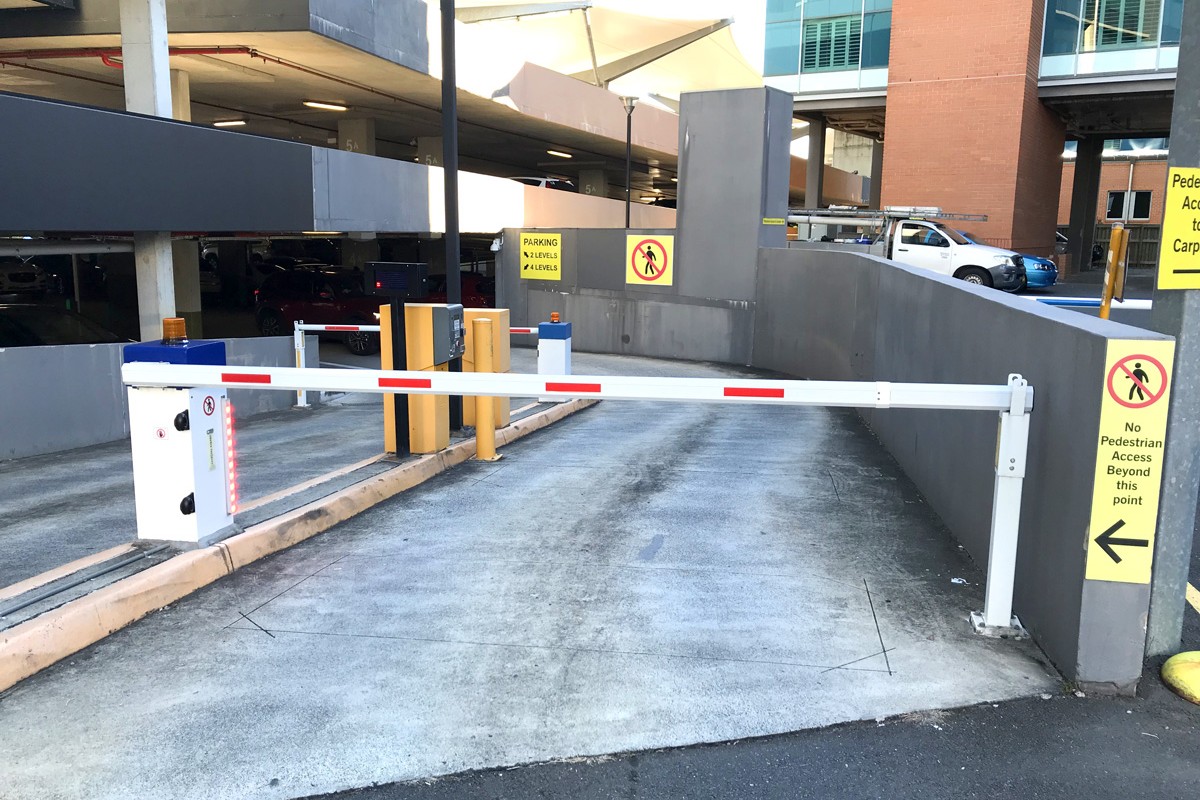

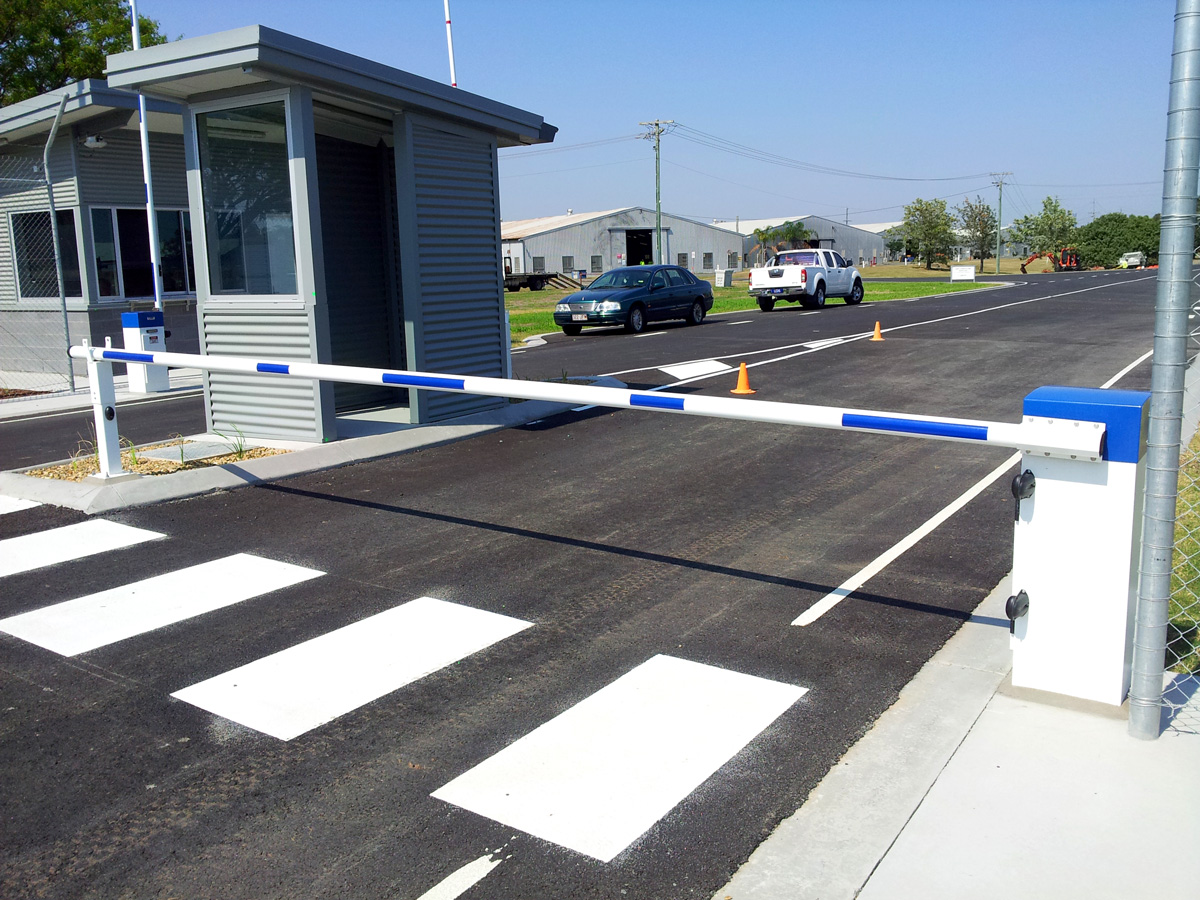

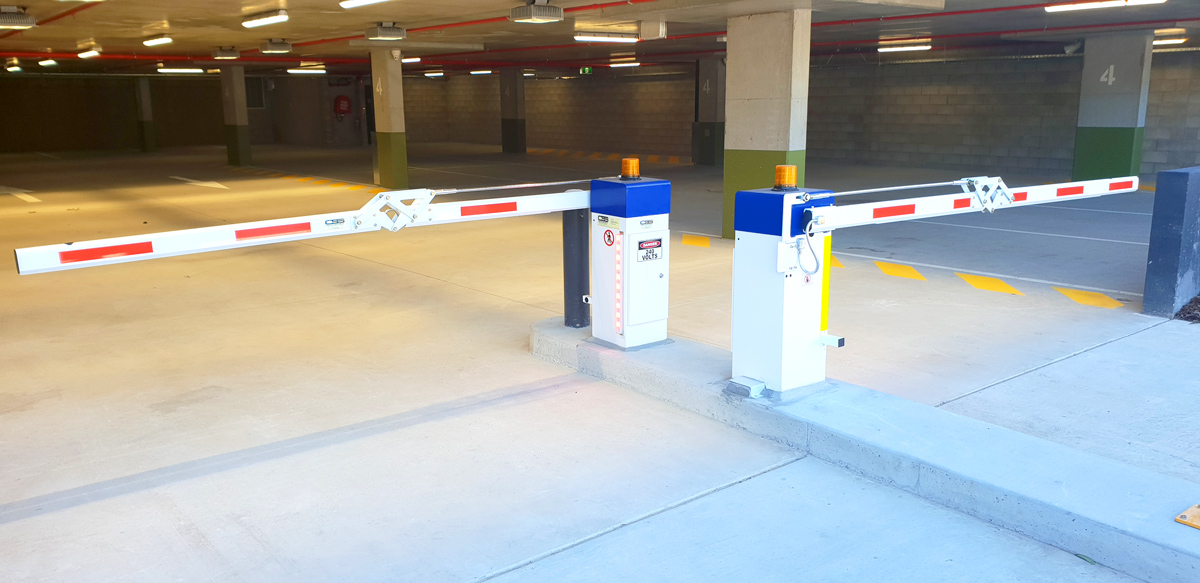

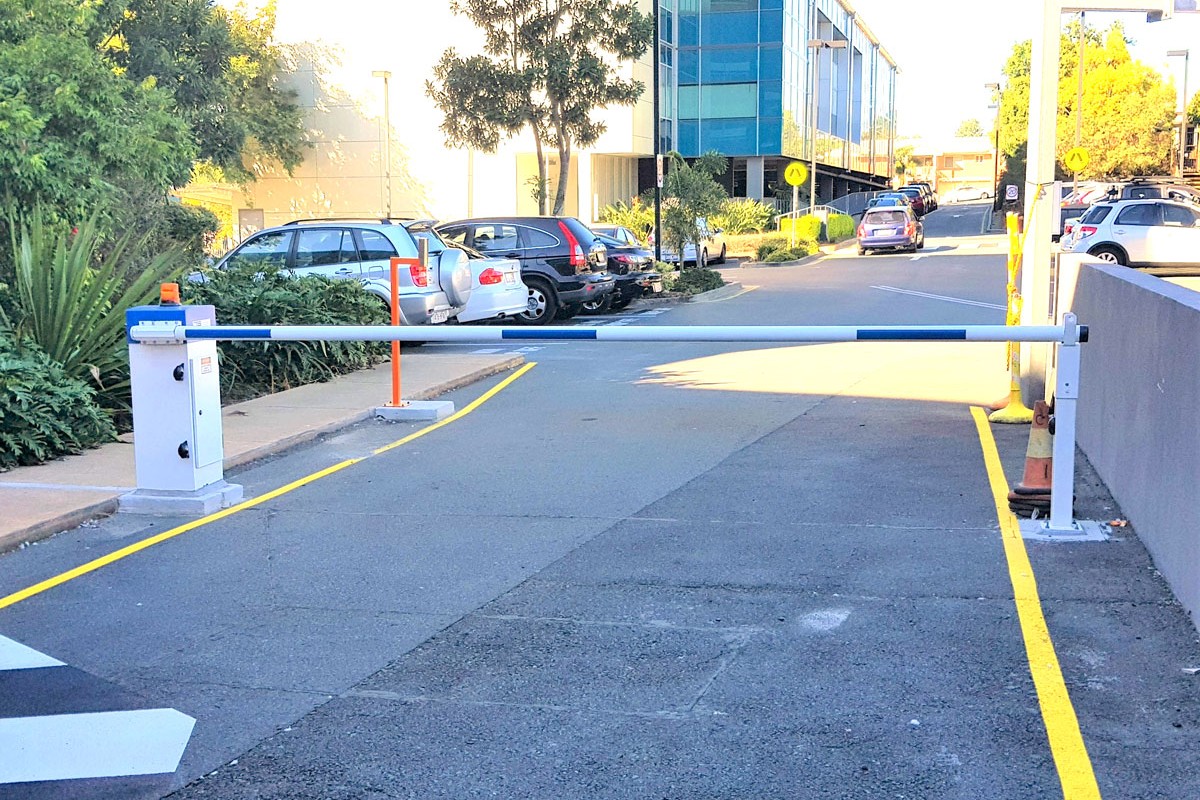

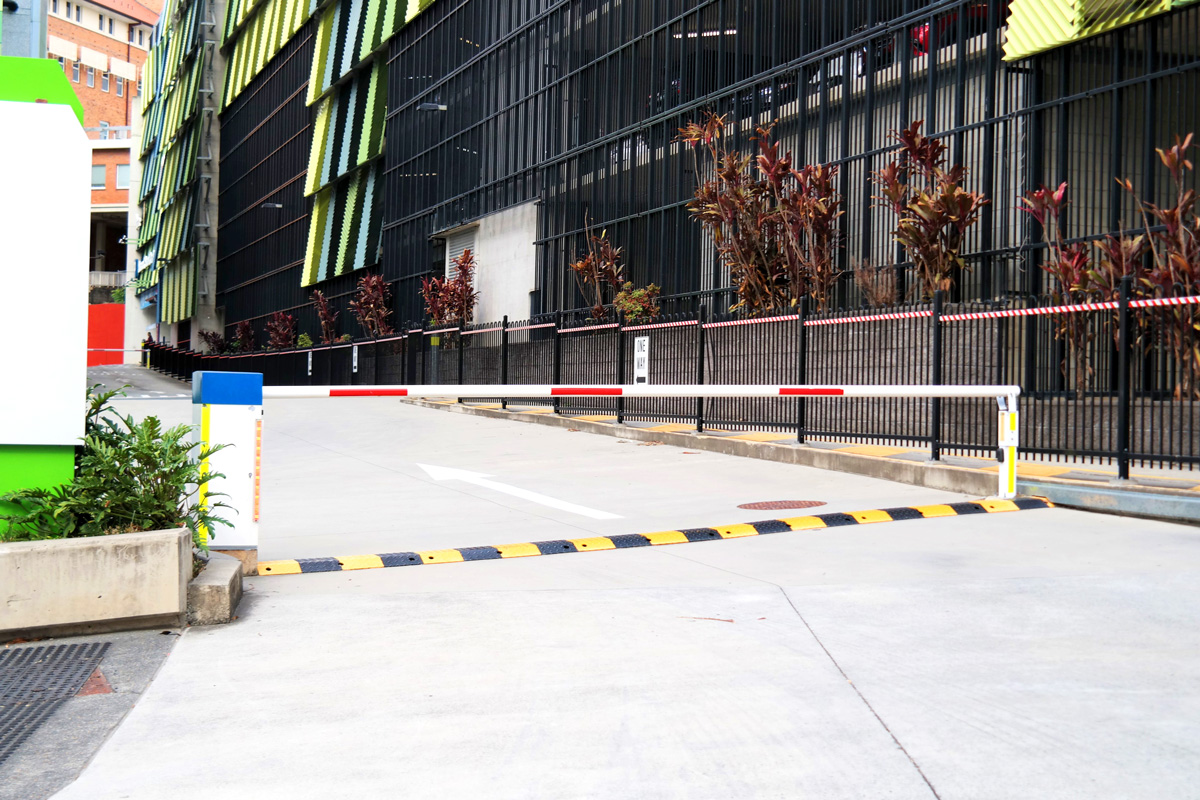

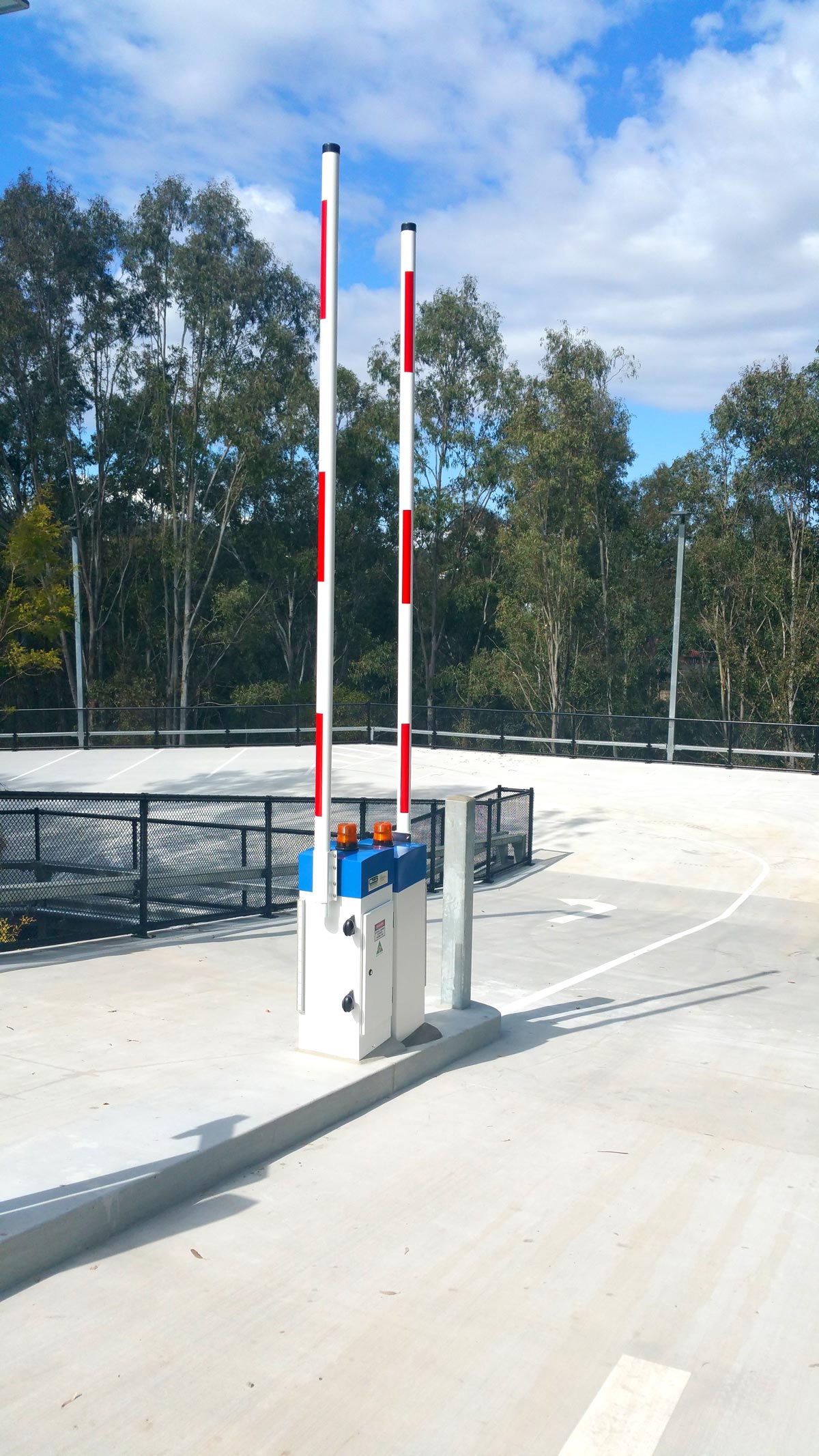

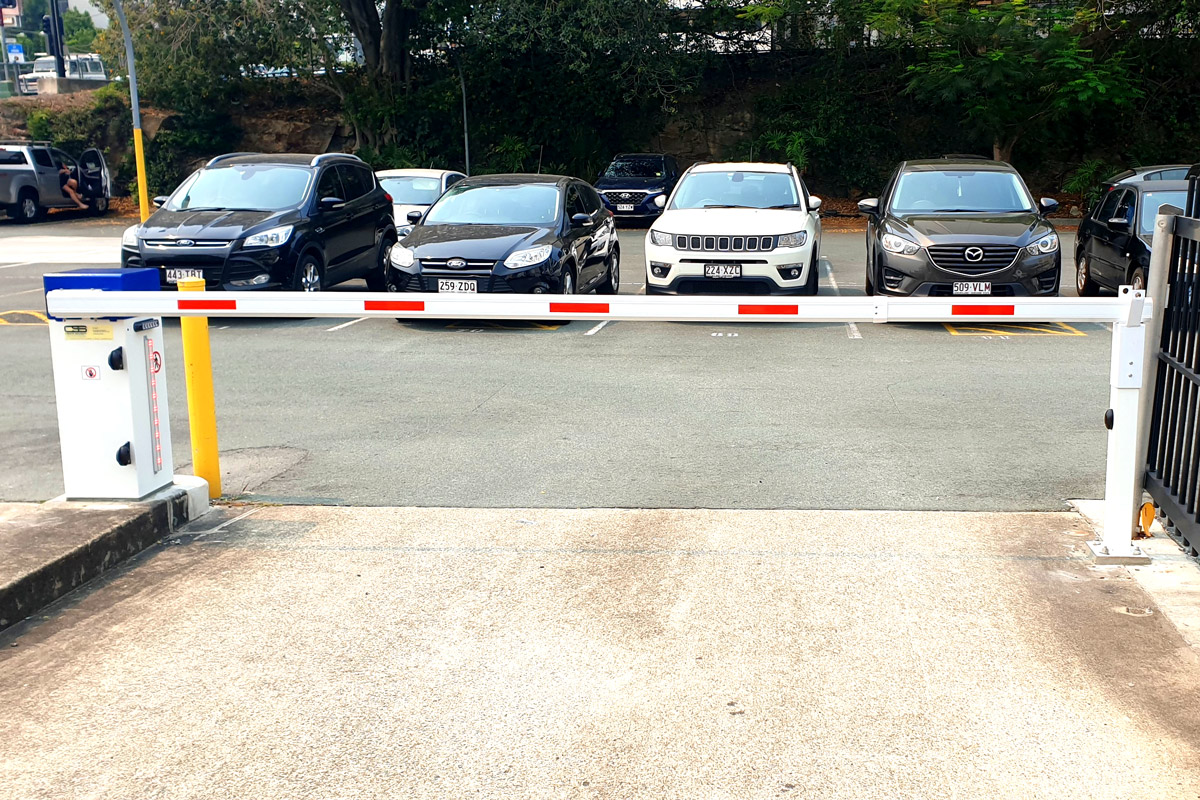

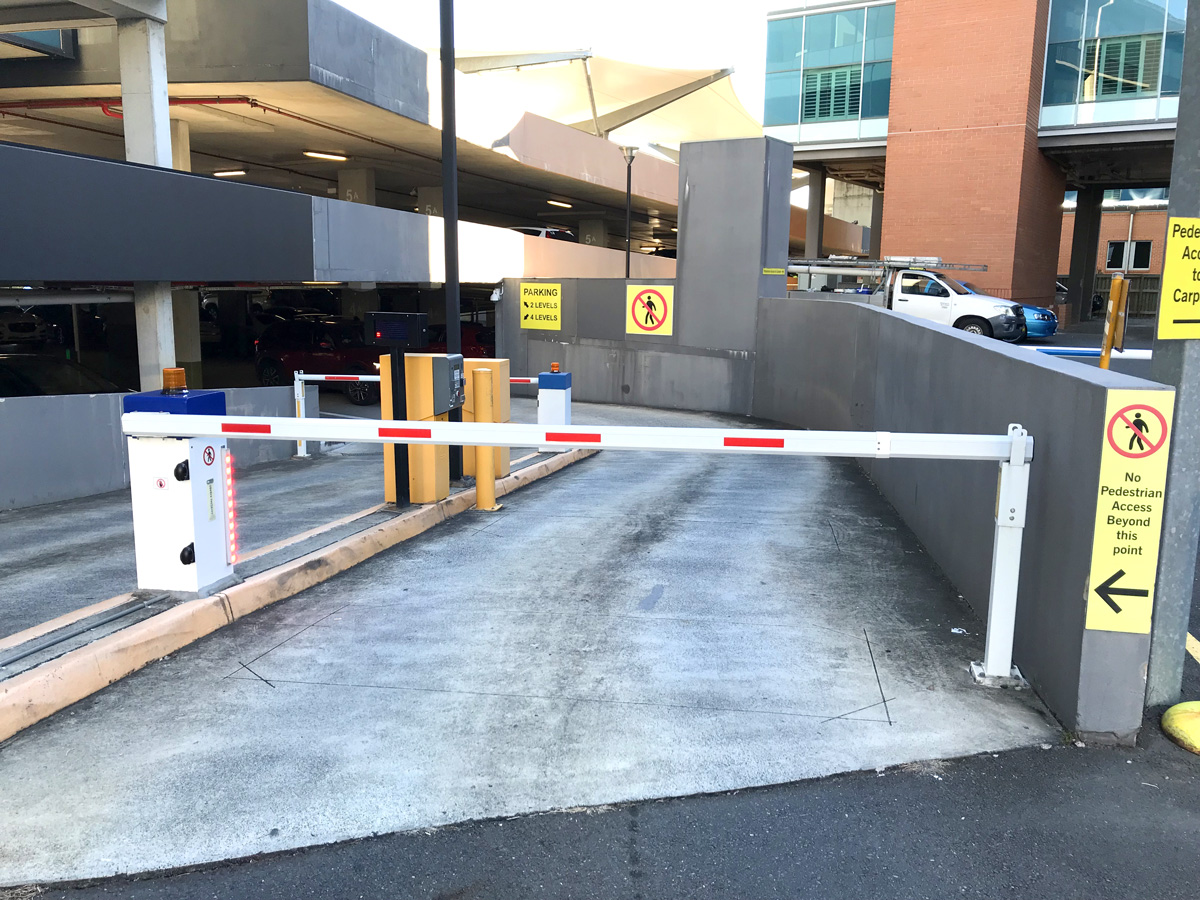

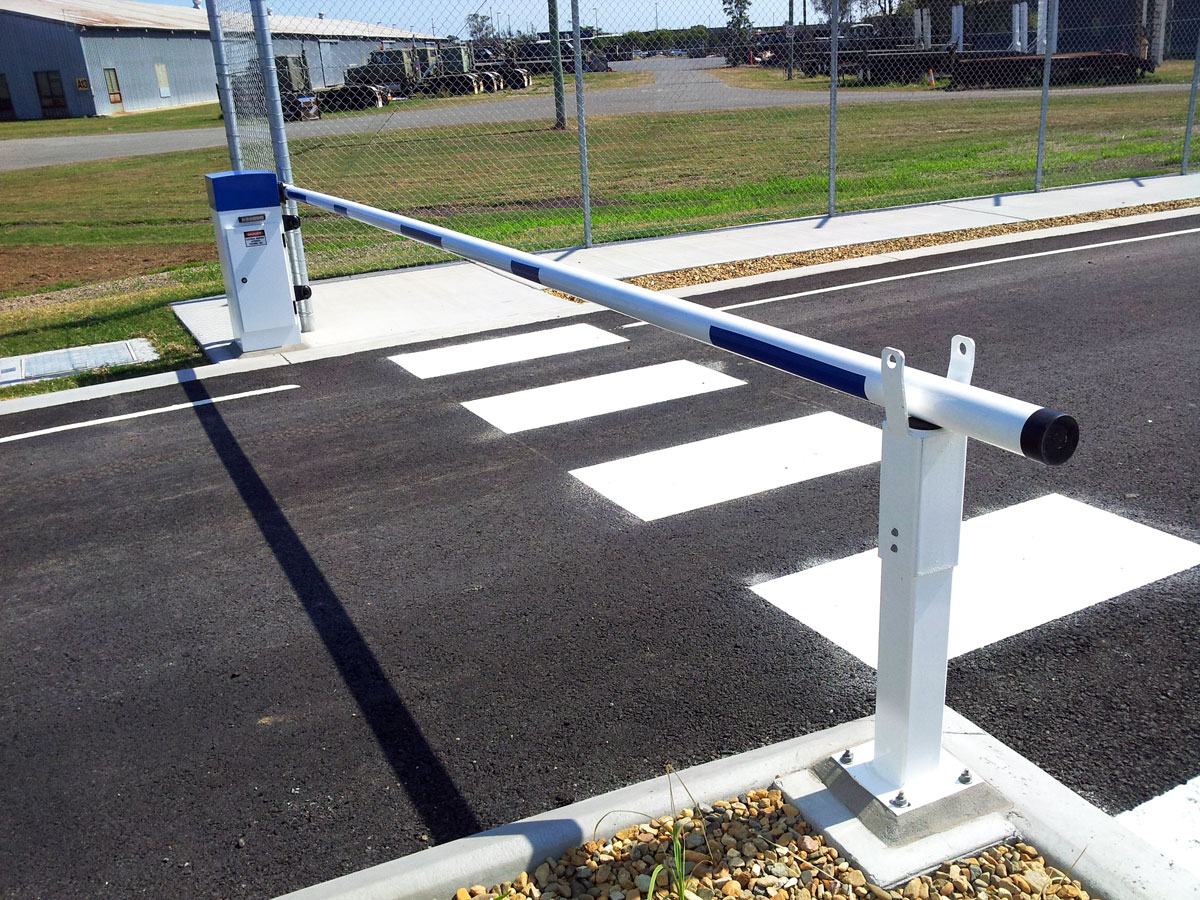

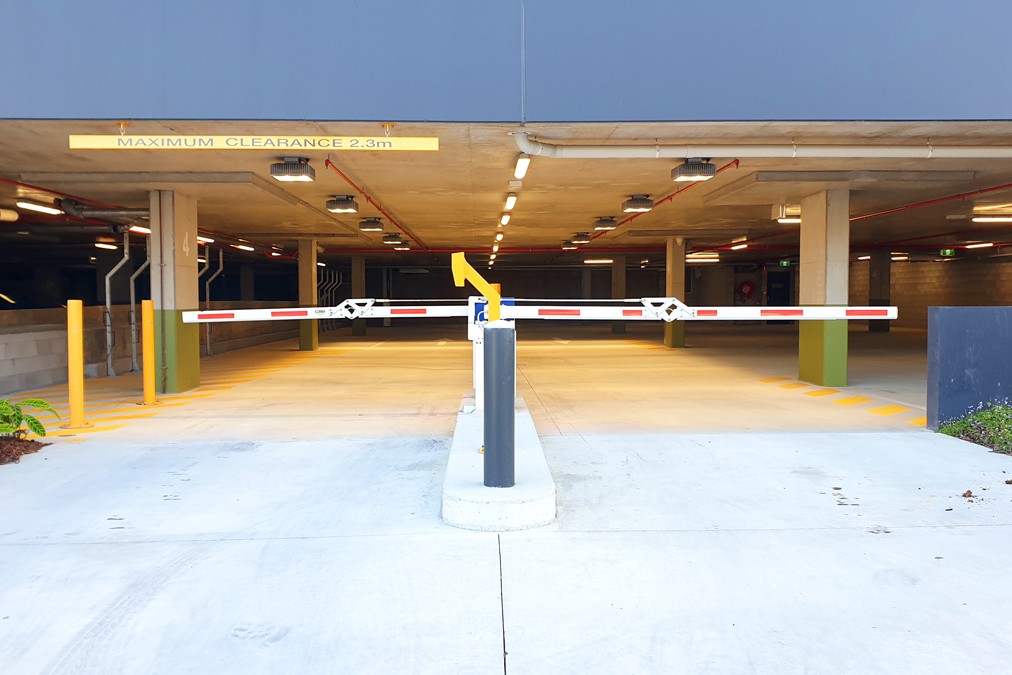

Product Gallery
